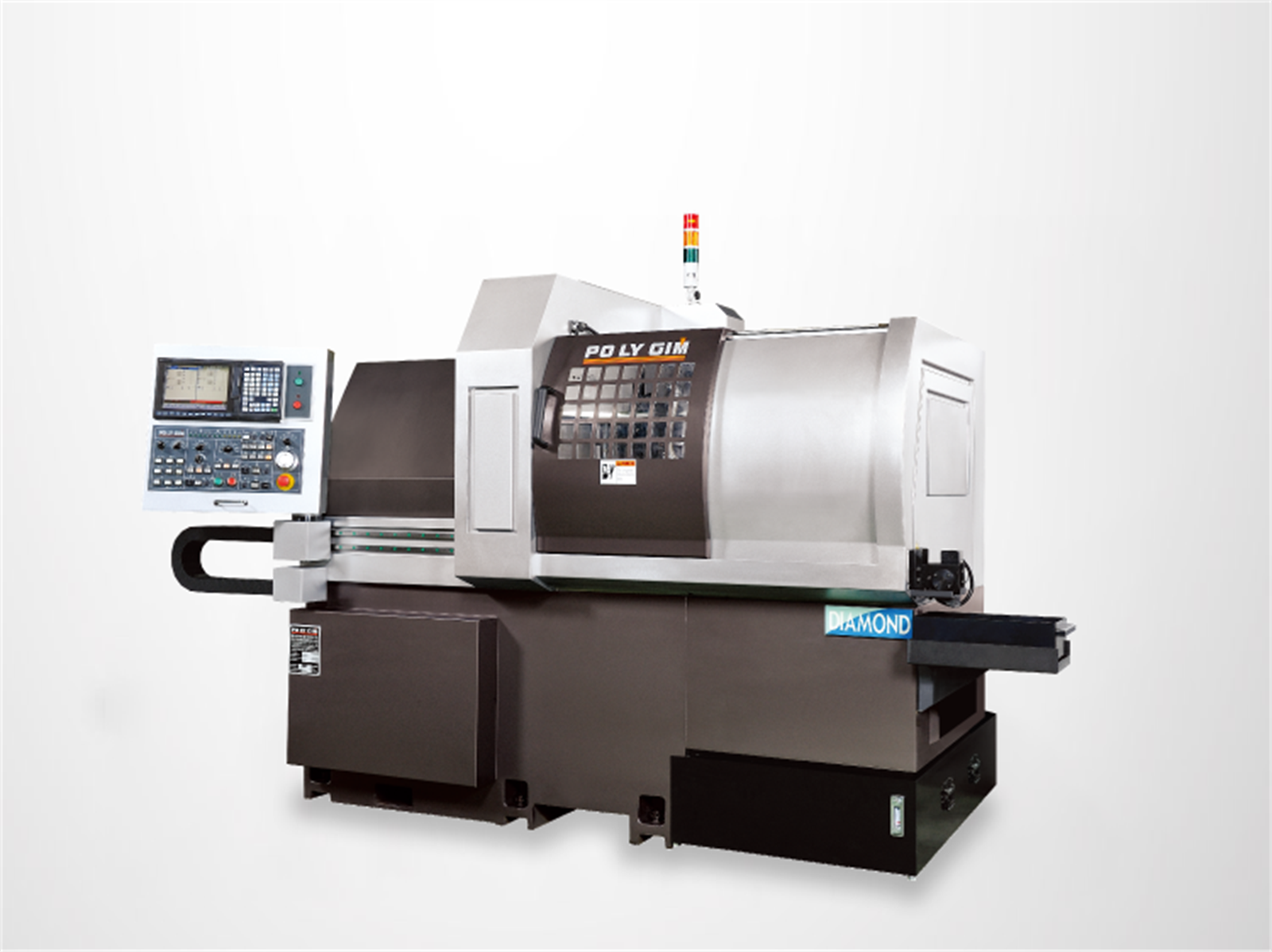

Cross travel sub-spindle : Cross travel sub-spindle design. The main and sub spindles can work either one at a time or simultaneously for reduced machining duration. This design brings multi-function front and rear machining. Short remnant material : With the optional rough material bushing, the remnant material can be 50mm (depending on the part length). Raw material machining : 0.1mm material tolerance can be achieved by using the Rough material bushing. Replaceable fixed / Driven toolholder set : The 4 pc back stationary / driven tool holder is replaced by the newly designed replaceable fixed tool holder or driven tool holder. This enables increased tooling fiexibility.
Control System: Mitsubishi M70 / M80 Main spindle Back spindle Work light Coolant system Part off detective sensor Fixed bushing (Except 32B Ⅱ/ 32CSB Ⅱ/ 42B Ⅱ/ 42 CSB Ⅱ) Live bushing Part catcher 6 pcs O.D. turning tool holder(42 Type with5 pcs O.D. turning tool) 4 pcs I.D. stationary tool holder 6 pcs cross working driven tool holder 3 pcs front working driven tool holder 4 pcs back I.D. stationary tool holder 3 pcs back working driven tool holder 4 pcs back I.D. stationary / working driven tool holder
Control System: Fanuc 0i-TF PLUS CS axis CSB II Main, back spindle 0.001º orientation) (CSB III Main spindle 0.001º orientation) Rough material bushing (without guide bush) Chip conveyor + bucket 2 pcs front I.D. stationary tool holder (available for B III / CSB III with belt type) Y2 Axis
