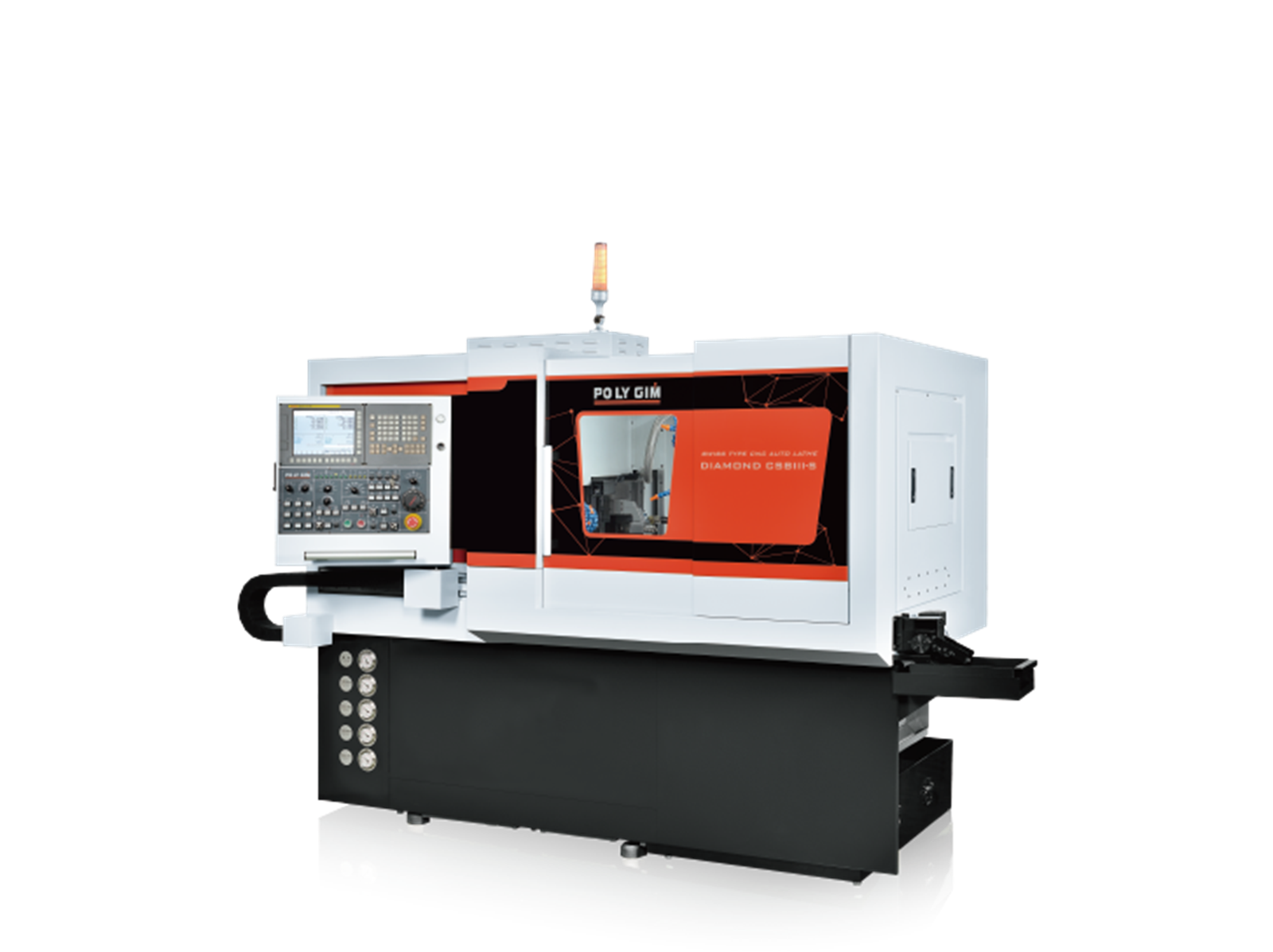

Polygim DIAMOND 16 CSB III-S Swiss Type CNC Lathe (DIAMOND 16 CSB III-S)

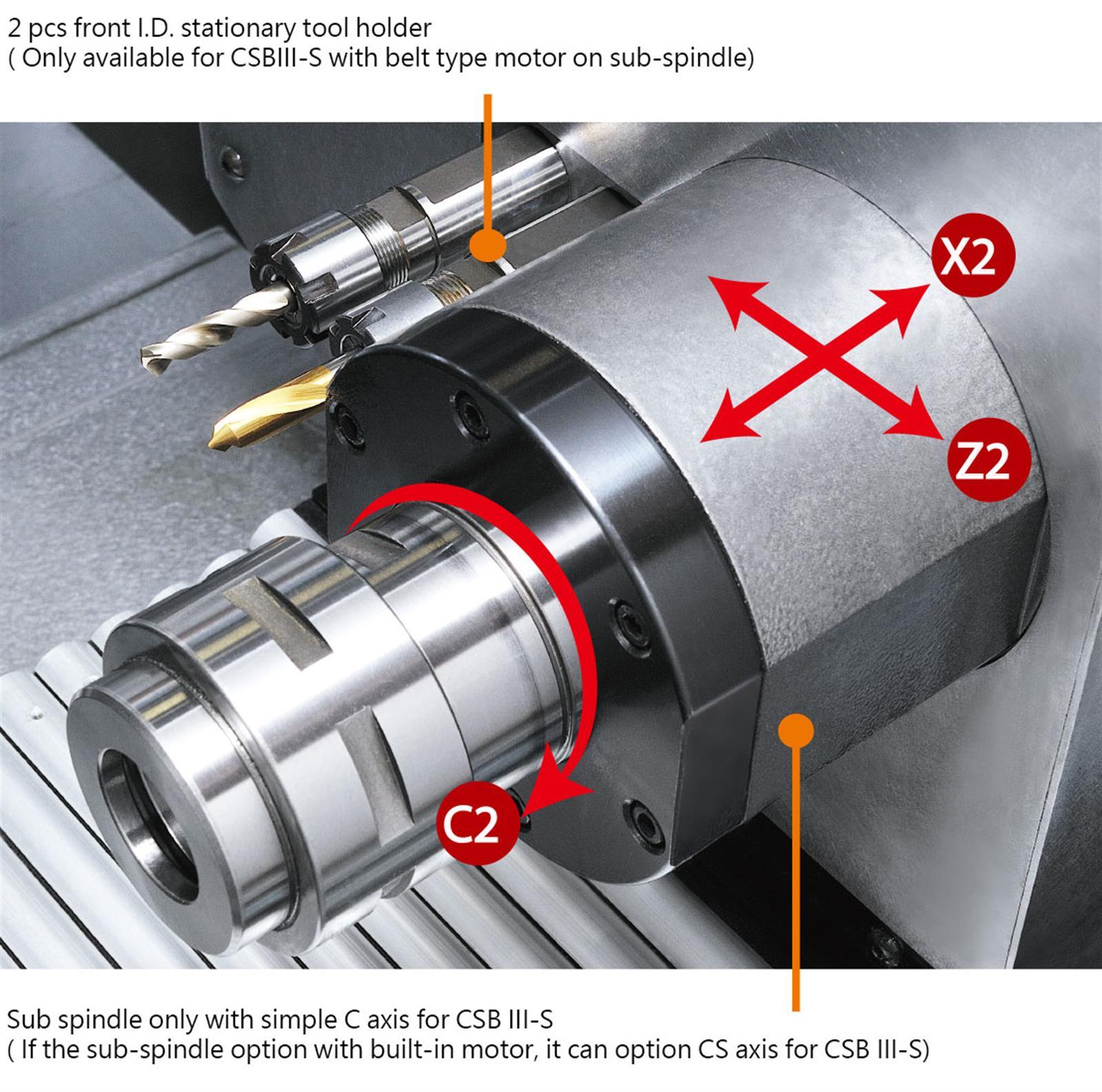

Cross Travel Sub-spindle Cross travel sub spindle design. The main and sub spindles can work either one at a time or simultaneously for reduced machining duration. This design brings multi-function front and rear machining.
Short Remnant Material With the optional Rough Material Bushing, the remnant material can be 50mm (depending on the parts length).
Raw Material Machining 0.1mm material tolerance can be achieved by using the Rough Material Bushing.

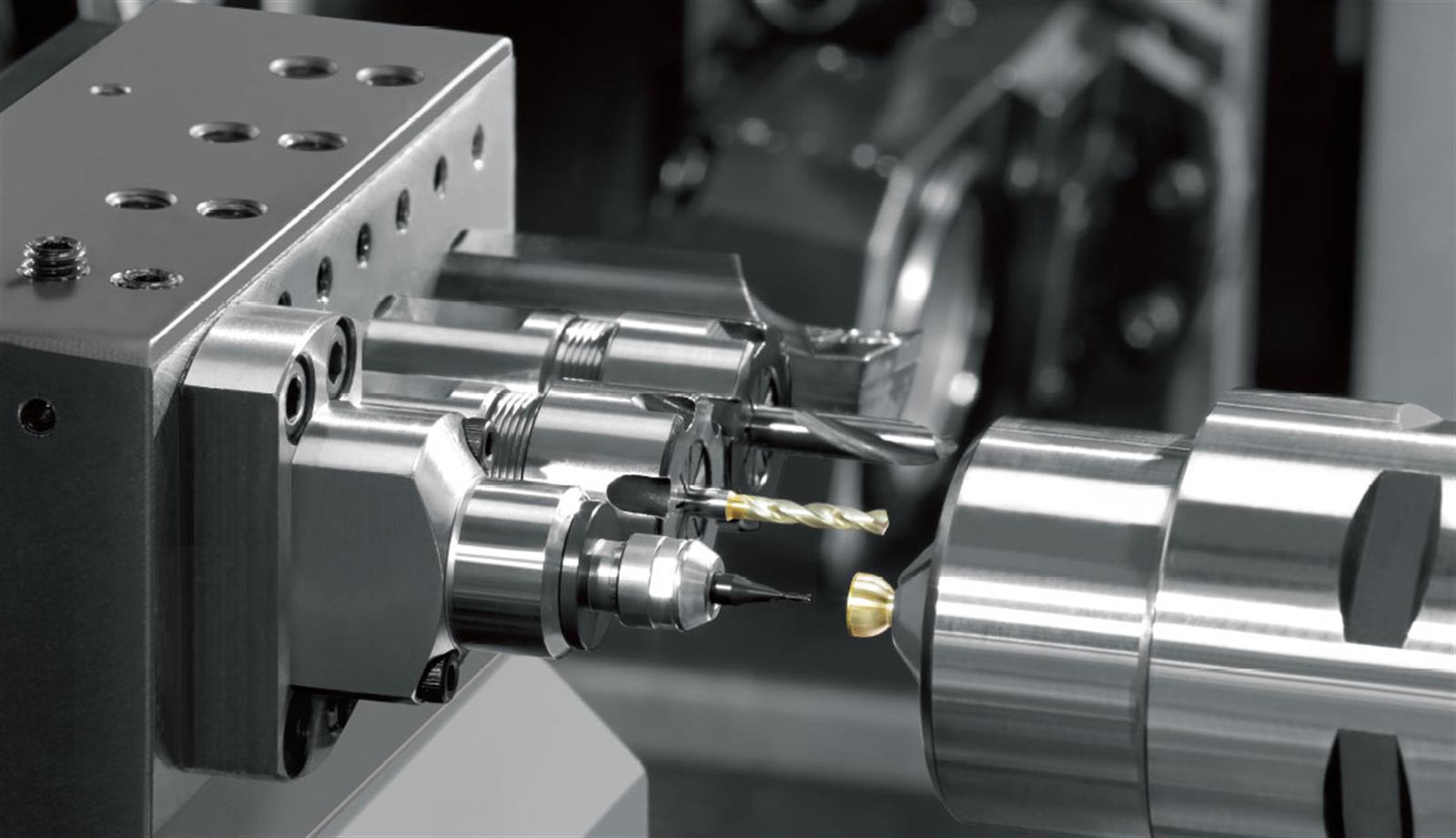

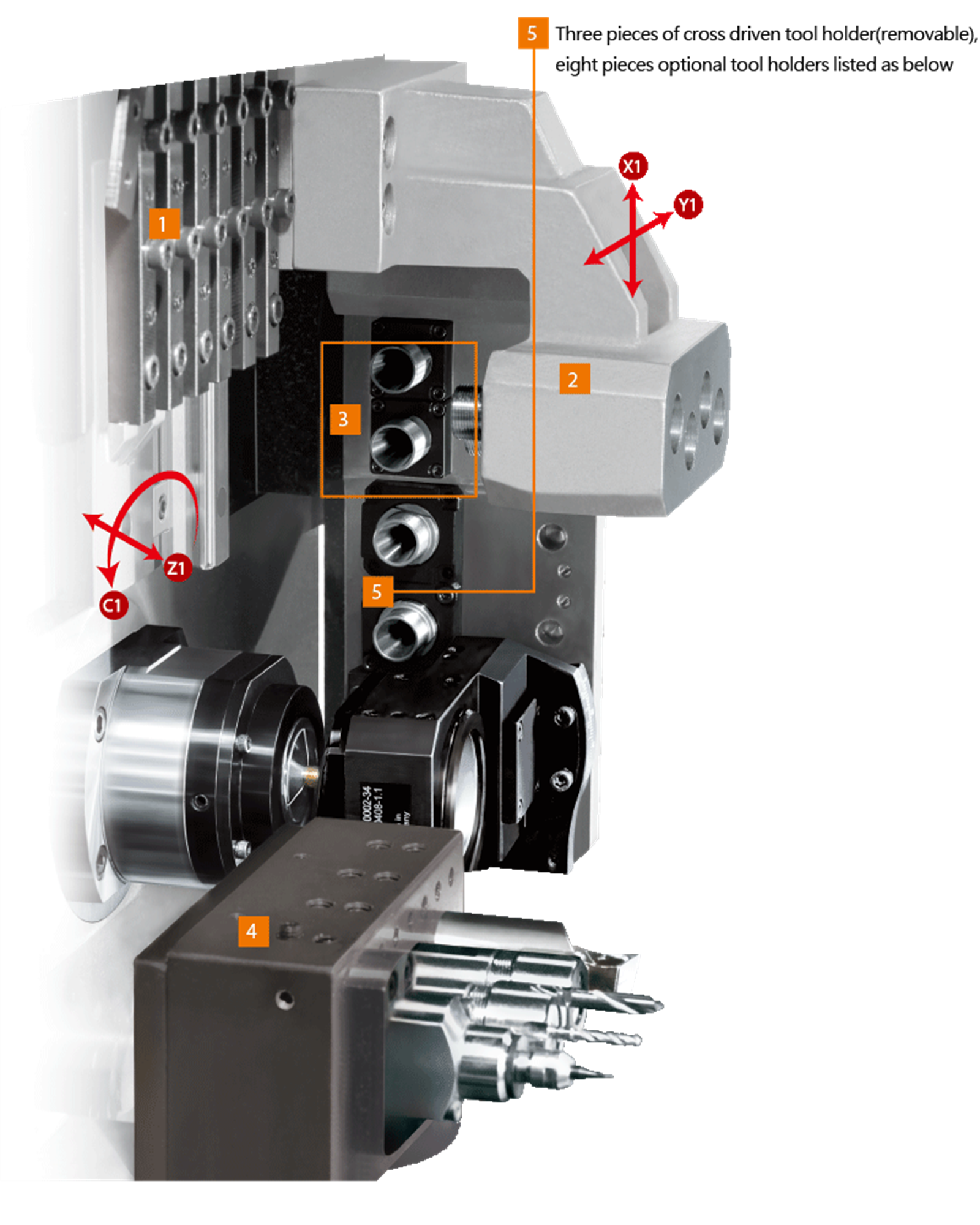

Replaceable Fixed/Driven Toolholder Set The 4 pc back stationary/driven tool holder is replaced by the newly designed replaceable fixed tool holder or driven tool holder. This enables increased tooling flexibility.



 Controller: Fanuc 0I-TF PLUS
 Main Spindle
 Back Spindle
 Working Light
 Coolant System
 Part off Detection Sensor
 Part Catcher
 Live Bushing
 Fixed Bushing (Except 25CSBIII-S)
 6 pcs O.D. Turning Tool Holder
 4 pcs I.D. Stationary Tool Holder
 4 pcs Back I.D. Stationary Tool Holder
 4 pcs Back I.D. Stationary Tool Holder
 2 pcs+3 pcs Cross Working Driven Tool Holder

Controller: Fanuc 31i-B or Mitsubishi M70
CS Axis (0.001° Orientation)
Chip Conveyor + Bucket
4 pcs Back Working Driven Tool Holder
(If choose Y2 axis need to option)
Y2 axis with 4 pcs Back Working Driven Tool Holder
2 pcs Front I.D. Stationary Tool Holder
(sub-spindle with belt type motor)

Model		DIAMOND 16 CSB III-S
Working Range	Max. Machining Dia	Ø16.5 mm
	Max. Machining Length Per Chucking	200 mm
	Max. Drilling Dia. (Main Spindle)	Ø10 mm
	Max. Drilling Dia. (Sub Spindle)	Ø7 mm
	Max. Tapping Dia. (Main Spindle)	M8
	Max. Tapping Dia. (Sub Spindle)	M6
O.D. Tooling	Number of Tools	6
	Dimension	□12 ×12 × 120
I.D. Tooling	Number of Tools	4
	Dimension	10 mm (ER16)
Cross Working Driven Tooling	Number of Tools	2+3
	Dimension	10 mm (ER16)
	Speed	200~6,000rpm
Back I.D. Tooling	Number of Tools	4 + 4
	Dimension	10 mm (ER16)
Back Working Driven Tooling (Option)	Number of Tools	4
	Dimension	10mm (ER16)
	Speed	5,000rpm
Spindle	Spindle Hole Dia.	ø17 mm
	Spindle Speed	200~10,000rpm
	Main Spindle Indexing Angle	C-axis
Back Spindle	Spindle Hole Dia.	ø17 mm
	Spindle Speed	200~6,000 rpm
	(Option built-in motor)	200~10,000rpm
	Max. Length for Front Ejection	50 mm
	Sub Spindle Indexing Angle	C-axis
Rapid Traverse	X1, Y1, Z1, X2, Z2	30 m / min
Motor	Built-in Spindle Motor	1.5 / 2.2 kW
	Back Spindle Motor	1.1 / 3.7 kW
	(Option built-in motor)	1.5 / 2.2 kW
	Y1, Z1, X2, Z2 Axes Motor	1 kW
	X1 Axis Motor	1.6 kW
	Y2 Axis Motor (Option)	1.6 kW
	Coolant Pump Motor	1 HP
	Lubrication Motor	4 w
	Cross Driven Tool Motor	2.2 kW
	Back Driven Tool Motor (Option)	1 kW
	Y2 Axis with Back Driven Tool Motor (Option)	2.2 kW
	Center Height	890 mm
Machine Dimensions	Weight	2,170 kg
	(Option Y2 Axis)	2,550 kg
	Machine Dimensions	2,440 x 1,430 x 1,650 mm
	(Option Y2 Axis)	2,690 x 1,495 x 1,890 mm
Air	Air Pressure	5 kg / cm
	Air Supply	10 L / min
