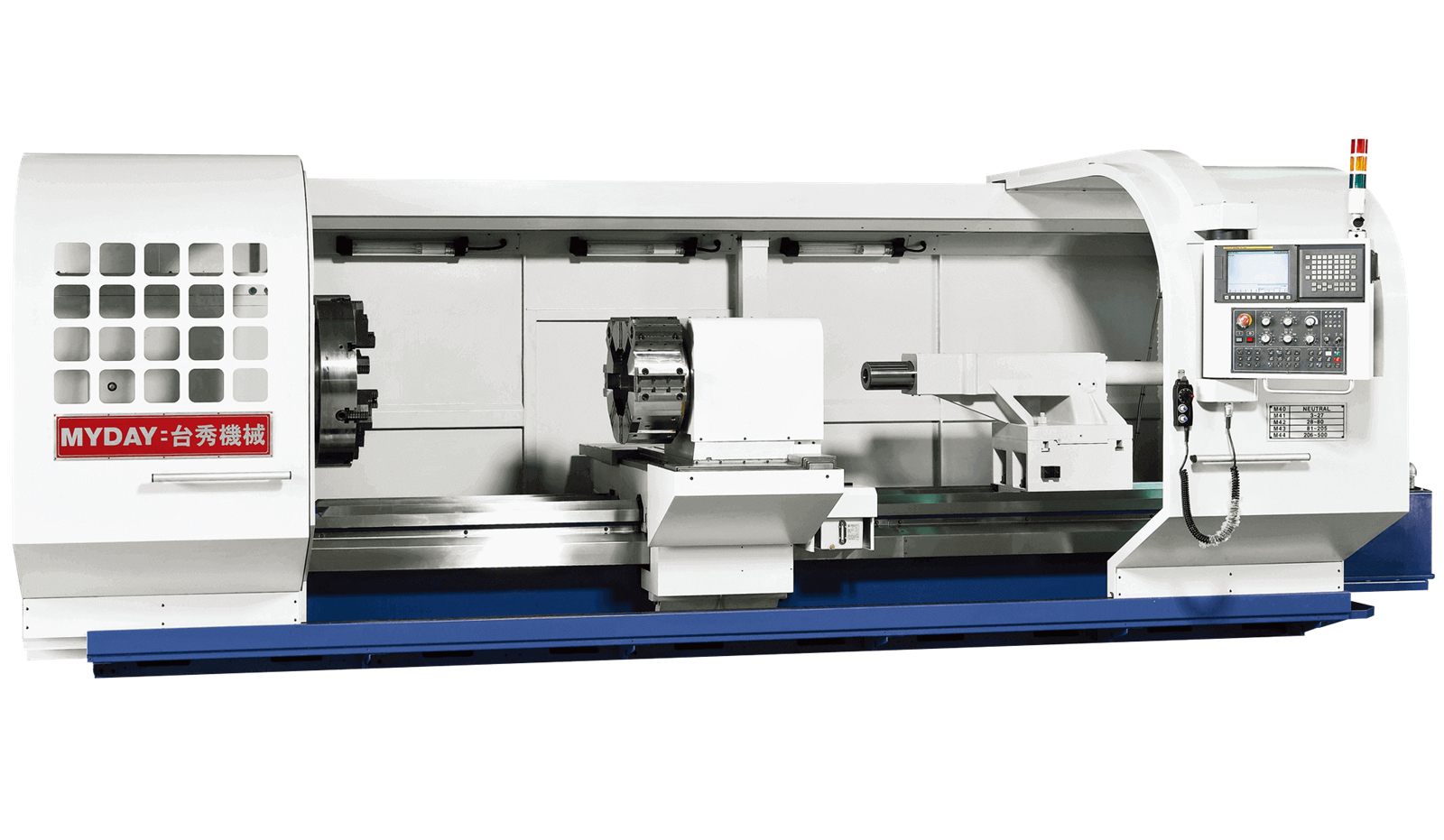

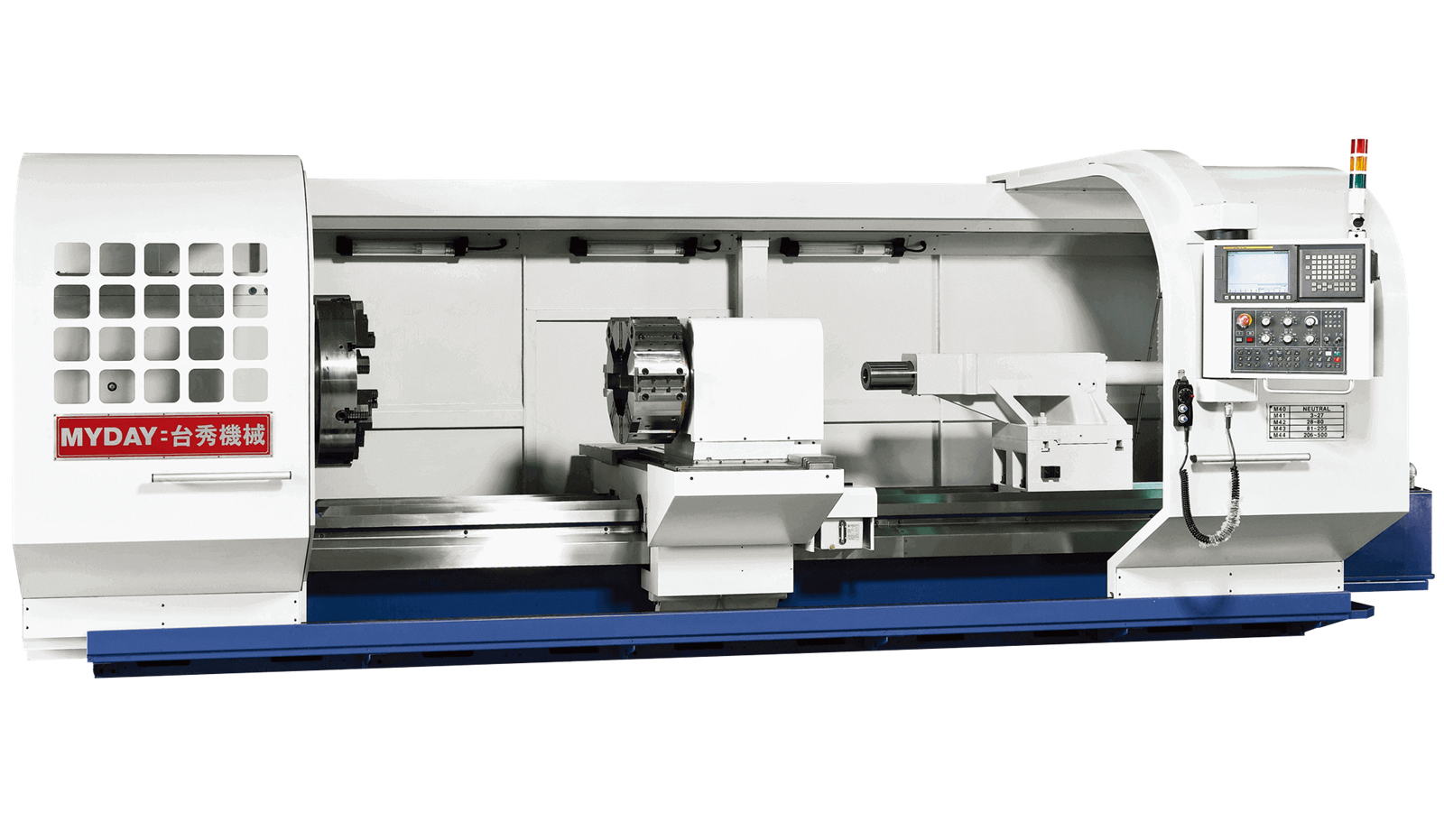

Myday SOC960 CNC Oil Country Lathe (22” Bed) (SOC960)

CNC Oil Country Lathe is a famous product line for oil & gas fielding and metal industry. It could be big bore lathe of double chucks at both sides of the headstock, or it could have large swing for big workpiece. It could be applied to oil pipes, big steel rollers, large diameter flanges, long shafts of ships, etc. Besides, for better workpiece clamping, we have rotary quill option on tailstocks.

CNC controller: FANUC, FAGOR or SIEMENS
AC spindle motor (22KW)
Auto lubrication system
Coolant system
Spindle oil chiller
Electric cabinet air conditioner
2-door type splash guard
Chip conveyor
Work light
Spindle sleeve and dead center (for spindle bore ≦ 9")
Tailstock center
Leveling bolts & pads
Tool box with oiler, spare fuse, paint & tools
Operation & service manual

3-Jaw Chuck
4-Jaw Chuck
Face Plate
Hydraulic Chuck
Pneumatic Chuck
Double Chuck System
Steady Rest
Follow Rest
Heavy Duty Steady Rest (2-point type)
Hydraulic or Electric Milling Device
Hydraulic Spindle Orientation (5 degree resolution)
Boring Device
Hydraulic 4-way Tool Post
Hydraulic V8 Turret
Hydraulic V12 Turret (for TNC-1200 and above)
Hydraulic Tailstock
C-axis Control
Power Turret

Description \ Model	SOC960
Swing over bed	960 mm
Swing over cross slide	530 mm
Bed width	560mm (22”) (660mm with auxiliary guideway)
Distance between centers	1500~6000mm (60”~240”) (bed casted in one piece)
Spindle bore	Ø156mm (6”) / Ø230mm (9”) / Ø260mm (10”) /  Ø310mm (12”) / Ø360mm (14”)
Spindle nose	A2-11 / A2-15 / A2-15 / A2-20 / A2-20
Spindle speeds (4 Steps)	6-800 / 4-600 / 4-600 / 3-400 / 3-400 rpm (Chucks are NOT Considered)
Spindle motor	S1: 22KW (30KW opt.)
Ball screw diameter	X-axis: Ø40 , Z-axis: Ø63 (BC≤5M) / Rack and Pinion (DBC≧5)
Rapid Traverse	X-axis : 5 m/min , Z-axis : 5 m/min
Max, x-axis travel	600mm
Max, z-axis travel	1250~5750 mm
Tailstock spindle travel/Quill	300mm / Ø125
Tailstock spindle taper	MT#6
Controller	FAGOR 8055i	FANUC 0i-TF	SIEMENS 828D
X-axis servo motor	FKM 64	αiF12	1FK7083
Servo motor output	3.4 KW	3.0 KW	2.62 KW
Z-axis servo motor	FKM 66	αiF22	1FK7101
Servo motor output	4.9 KW	4.0 KW	4.29 KW
Coolant pump motor	0.7KW (50Hz) / 1KW (60Hz)
