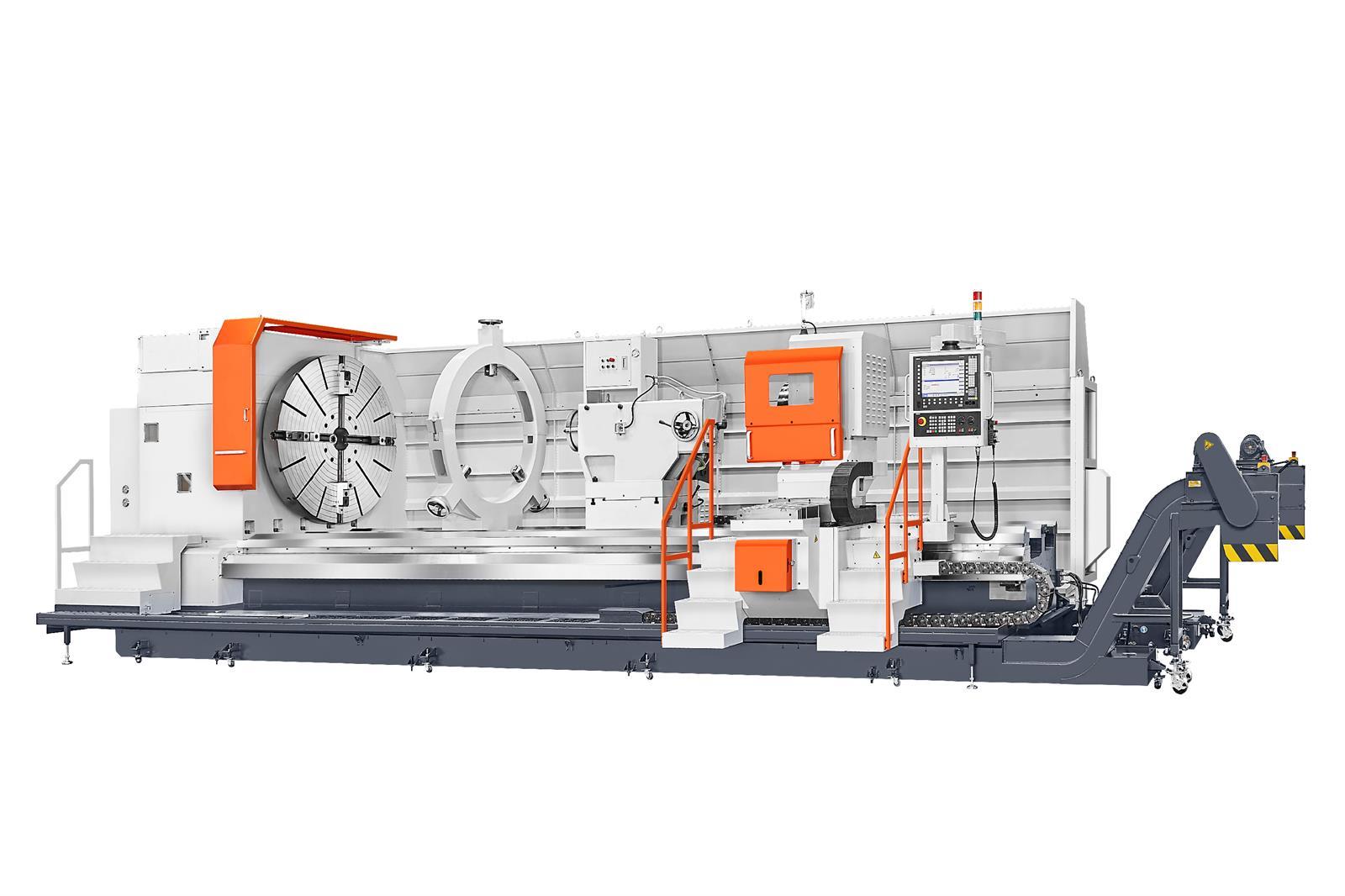

Myday SGF2000 CNC Giant Four Guideway Lathe (52” Bed)

CNC Giant Four Guideway Lathe is a special type of flat bed lathe. It has one wide bed and 2 pairs of guide ways. Its tailstock and steady rests are placed on the pair of guide ways at the rear side. Thus, we would build the carriage across the 4 guide ways (called full length cross slide) as standard model; this model could stand for very heavy duty machining and has full cross slide travel. Besides, we could build its carriage on one pair of guide way at the front side (called half length cross slide). In this option, the carriage wouldn’t interfere with steady rests and its tailstock; it’s very good at outer diameter machining at one time without removing steady rests.


CNC controller: FANUC, FAGOR or SIEMENS
AC spindle motor
Spindle oil cooler
Electric cabinet air conditioner
Auto lubrication system
Coolant system
Hydraulic 4-way toolpost or 8-station turret
Chuck guard and turret guard, control panel moving along with carriage
Rear splash guard and chip conveyor (DBC≦8 meter)
Spindle sleeve and tool centers
Motorized Tailstock with rotary quill
Leveling bolts & pads
Tool box with oiler, spare fuse, paint & tools
Operation & service manual


4-jaw chuck
Face plate
Bull Nose Head(on Tailstock Quill)
Steady rest(3point Closed Type)
Steady rest(3point C- Type)
Steady rest(2-point Open Type)
Boring Device
C-axis Control
Power Turret
Bigger Tailstock Rotary Quill
Bigger Rack and Dual Pinions for Extremely High Thrust on Z-axis

Description  \  Model	SGF2000
Swing over bed	2000 mm
Swing over cross slide: Full length (opt.1)	1440 mm
Swing over cross slide: Half length (opt.2)	1510 mm
Center height	1000 mm
Bed width	1345mm (52.9”) (1575mm with auxiliary guideway)
Distance between centers	3000 mm ~ 12000 mm
Travel of Full-length cross slide	X-axis: 1100mm, Z-axis: 2600~14600mm
Travel of Half-length cross slide	X-axis: 800mm, Z-axis: 3000~15000mm
Spindle bore / Spindle nose	Ø210mm / A2-15 or A2-20
Spindle speeds (4 Steps)	5 ~ 460 rpm (Chucks are NOT considered)
Spindle motor	FANUC 45KW, FAGOR 51KW, SIEMENS 51KW, or 100HP with inverter
Rapid travel	X-axis: 5 m / min , Z-axis: 5 m / min
Tailstock spindle travel / Quill	300 mm / Ø290 mm (Rotary)
Tailstock spindle taper	MT#7
Controller	FANUC 0i-TF		FAGOR 8055i		SIEMENS 828D
X-axis servo motor	α22i (4.0 KW)		FKM 66 (4.9 KW)		1FK7103 (5.2 KW)
Z-axis servo motor	α30i (7.0 KW)		FKM 82 (6.7 KW)		1FK7105 (7.7 KW)
X-axis transmission	Ball Screw Ø50mm with 1:2 gear set
Z-axis transmission	Ball Screw Ø80mm (BC 3~4M),  Rack and Pinion (BC 5~15M)
Coolant pump motor	0.7KW (50Hz) / 1KW (60Hz)
