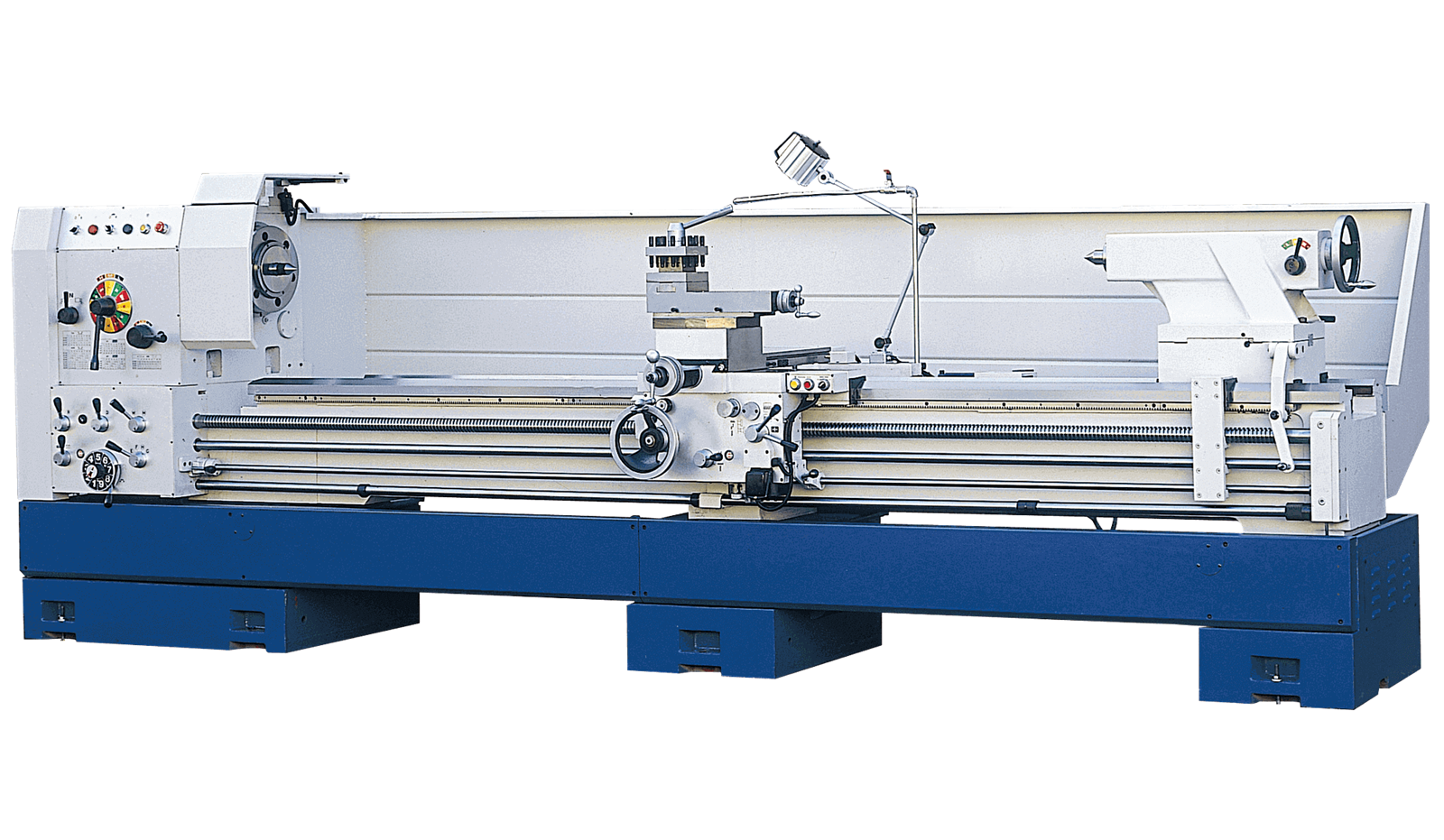

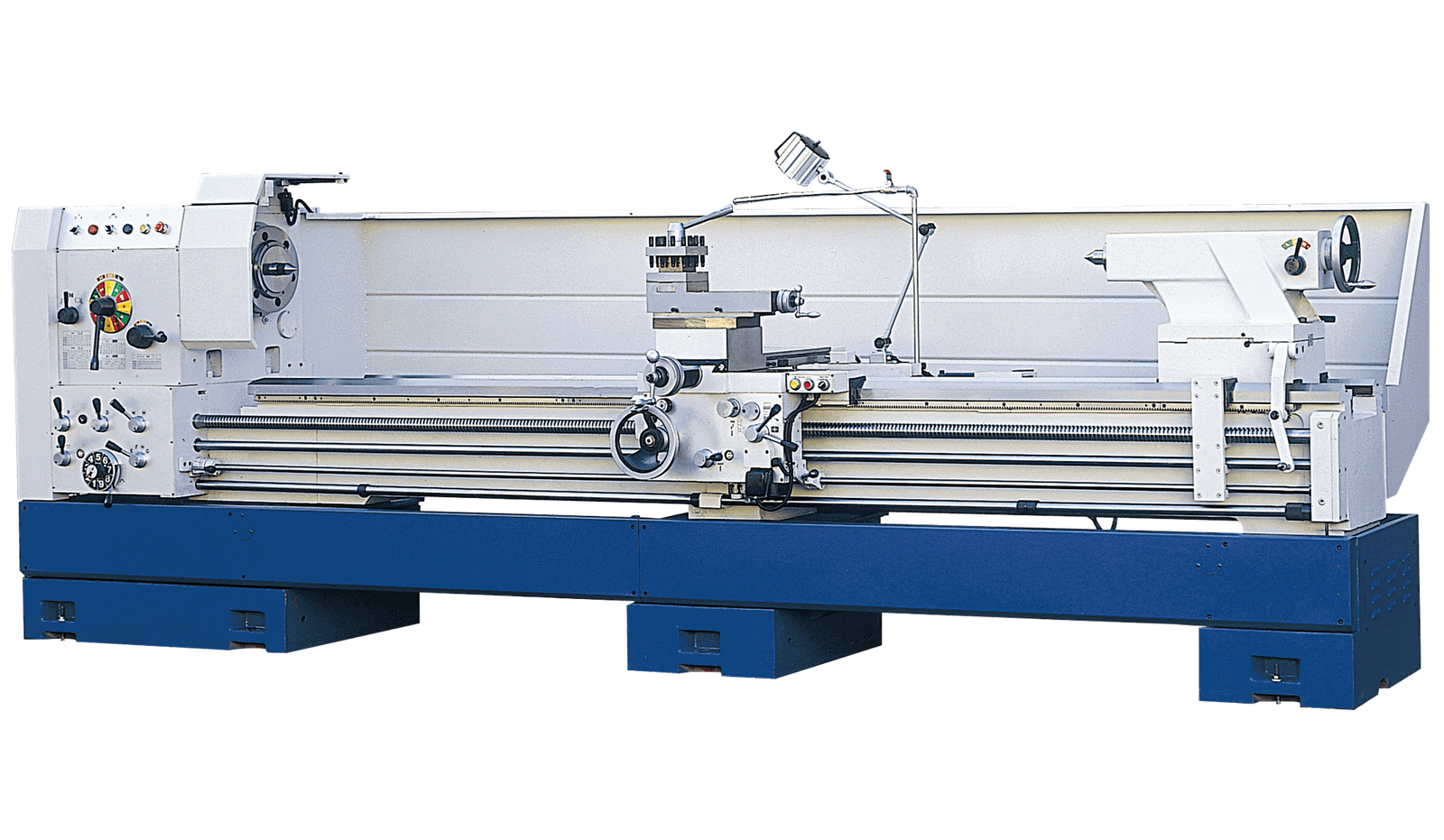

Myday MPB670 Heavy Duty Oil Country Lathe(18” Bed)

Myday MPB670 Heavy Duty Oil Country Lathe(18” Bed) (MPB670)

Brand : Myday

Stock Amount : 0

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InTaiwan

Min. Order Qty.1 Pcs.

Warranty1 Year

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Lathes

Heavy Duty Oil Country Lathes

Heavy Duty Precision Lathe is a very popular product line in metal industry. The spindle motor power in the series is transmitted to the spindle through pulley, belt and 12-step gear sets. It could perform heavy duty machining with high speed and high rigidity.

Main Motor
Auto Lubrication System
Coolant System
4-Way Tool Post
Leveling Bolts & Pads
Main Spindle Sleeve
Main Spindle Center
Tailstock Center
Meter / Inch Community Gear Box
Tool Box with Tools
Independent Electrical Box
Operation & Service Manual
Work Light

3-Jaw Chuck
4-Jaw Chuck
Face Plate
Double Chuck System
Steady Rest
Follow Rest
Rear Tool Post
Micro Bed Stopper
Taper Attachment
Quick Change Tool Post
Digital Readout
Rotary Center
Electrical System for CE
Splash guard

Description \ Model	MPB670
Center height	335 mm
Swing over bed	670 mm
Swing over cross slide	460 mm
Swing over gap	890 mm
Width of gap	450 mm
Width of bed	460 mm (18”)
Distance between centers	1500 (60”), 2000 (80”), 3000 (120”), 4000 (160”), 5000 (200”)
Spindle bore	Ø104 mm (4”) / Ø156 mm (6”) / Ø230 mm (9”)
Spindle nose	A2-11, D1-11 (4” or 6”) / A2-15 (9”)
Spindle speeds (12 Steps)	15-1000/ 13-800 /10-600 rpm
Tailstock quill diameter	Ø95 mm
Taper of center	MT#5
Quill travel	230 mm
Tool size	25 x 25 mm
Compound rest travel	230 mm
Cross slide travel	385 mm
Cross feeds	0.025-0.35 mm (36 Kinds)
Longitudinal feeds	0.05-0.7 mm (36 Kinds)
Lead screw diameter	Ø45 mm
Lead screw pitch	2TPI (inch) or 12mm (metric)
Threading range, metric	0.8-14 mm / Pitch (65 Kinds)
Threading range, inch	2-28 TPI (36 Kinds)
Module pitch threads	0.5-7 M (22 Kinds)
DP. pitch threads	4-56 P (36 Kinds)
Main spindle motor	20 HP(Opt.in 18'' Bed series)
Coolant pump	1/8 HP
