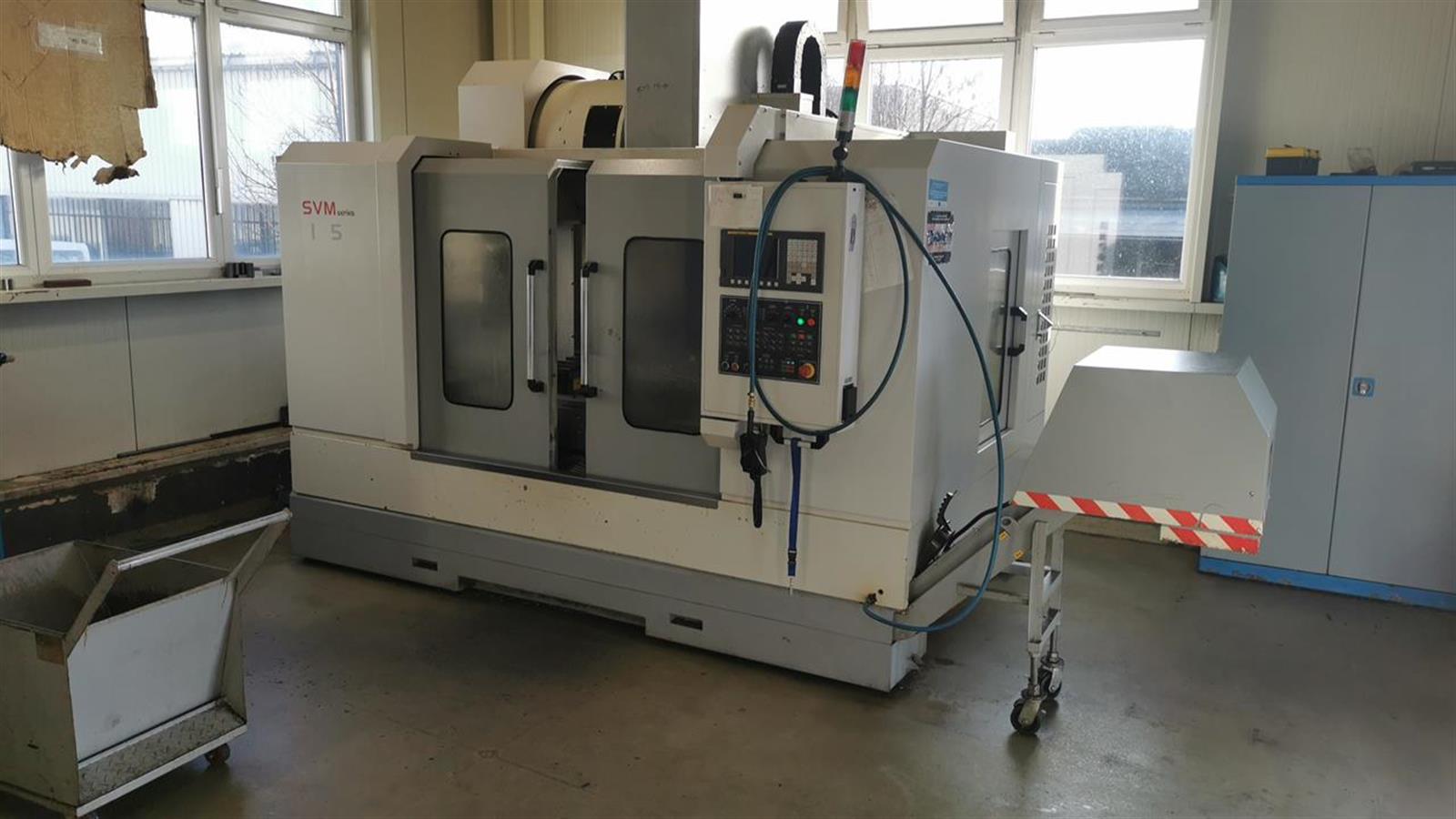

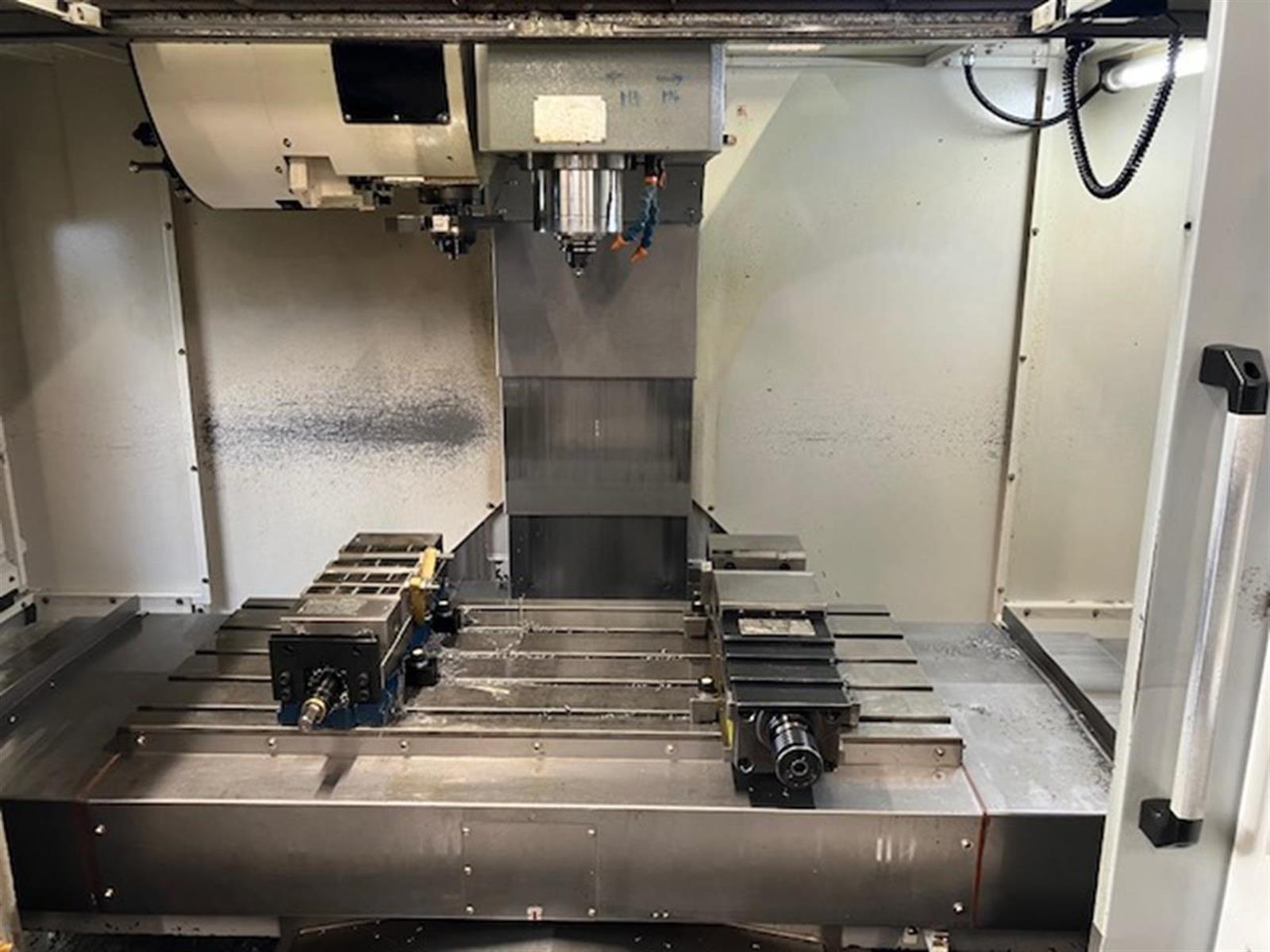

LILIAN SVM 105 Machining center - vertical (LILIAN SVM 105 Machining center - vertical)

Catalog No. : 5759
Type: SVM 105
Producer: LILIAN
Made in: 2013
Characteristic:
Control system: Fanuc Oi-MC
Total hours: 23000 h
Cutting Hours: 5081 h
Length of the working table: 1200 mm
Width of the working table: 500 mm
Maximum table load (evenly distributed): 650 kg
Number of tools in the magazine: 32 pcs
Block speed: 60-8000 1/min
X-Axis travels: 1050 mm
Y-Axis travels: 510 mm
Z-Axis travels: 560 cm
Taper: BT40
Max. tool weight: 6 kg
Main motor output: 11/15 kW
Machine height: 2558 mm
Machine length: 3050 mm
Machine width: 2319 mm
Machine weight: 5200 kg
Equipment:
Chip conveyor
Internal cooling

Axis X	1050 mm
Axis Y	510 mm
Axis Z	560 mm
Rotary table (4th axis)	no
Type of CNC	Fanuc Oi-MC
Table length	1200 mm
Table width	500 mm
Max. part weight	650 kg
Number of tool pockets	32
Spindle taper
Max. spindle speed	8000 rpm
Spindle motor power	15 kW
-------------------
Length x width x height	3050.0 × 2319.0 × 2558.0
Weight	5200 kg
Worked hours	5081 hours
Hours under power	23000 hours
State	good
At local norms	---------
Status	under power
