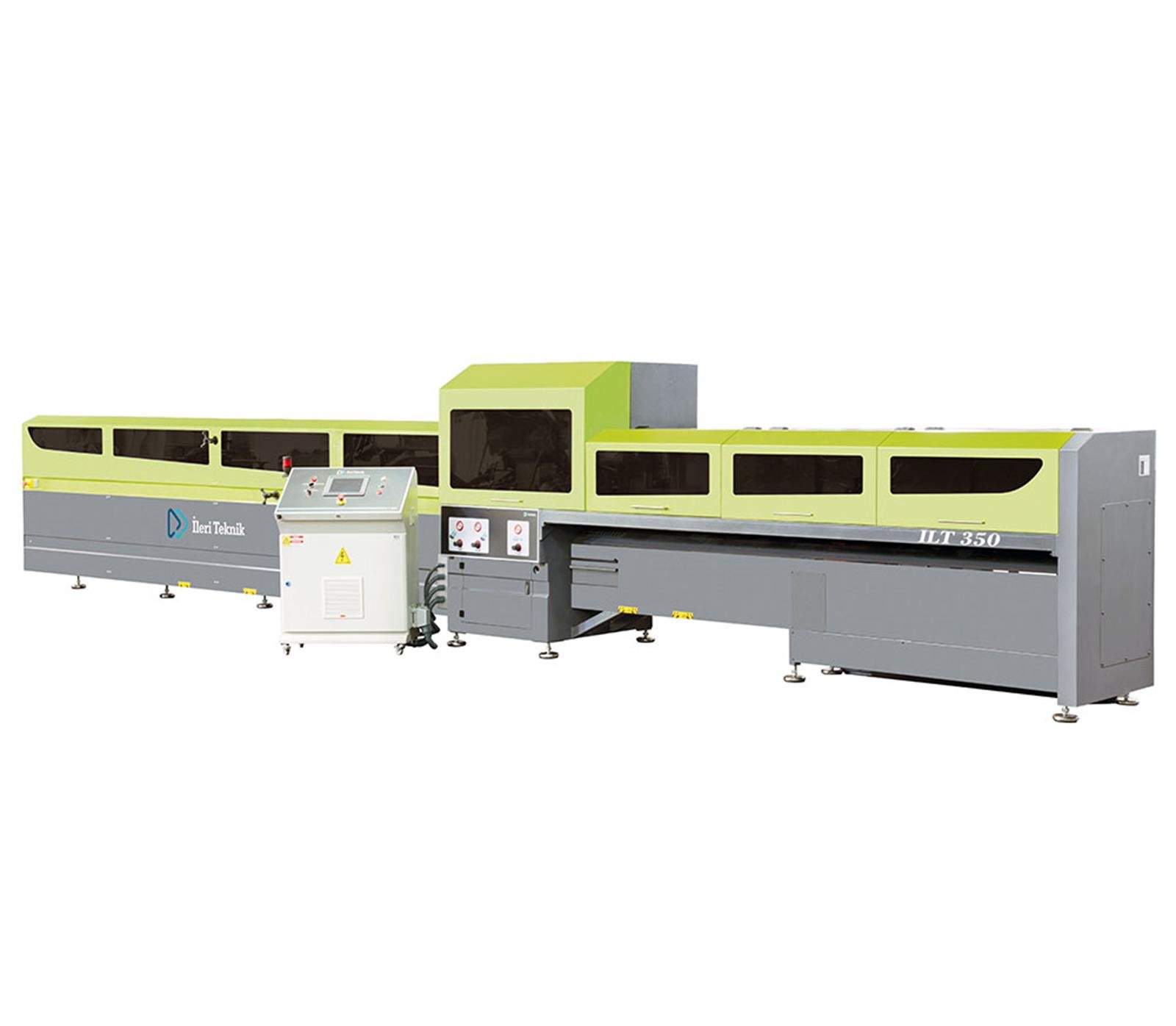

İleri Teknik ILT 350 Fully Automatic Circular Saw Machine (İleri Teknik ILT 350 Fully Automatic Circular Saw )

Compact, pull down manual circular saw with powered material clamping and operated by a hand lever, offer easy mitre cutting for the workshop or toolroom

• ILT 350 Fully Automatic Circular Saw Machine
• Material feeding system with rollers, controlled by servo motor
• Servo motor controlled pipe length stopper system
• Servo motor controlled vertical cutting system with ball screw,
• PLC controlled colour type touch screen display
• Heavy duty, helical gear and worm gear sets in gearbox
• Head descends on hardened roller type linear guides
• Backlash reduction for prolonged blade life
• 200 programs to save the all parameters for cutting again the same material
• PLC controlled touch screen panel
• ± 0.3 mm cutting length precision,



Cutting Capacity

Maximum Saw Diameter	350 mm
Saw Angle	90°
Round Material Diameter (max.)	Min. 15 - Max. 90 mm
Square Material (max.)	Min. 15x15 - Max. 80x80 mm
Rectangular Material (Max.)	Min. 15x15 - Max. 80x80 mm
Min Length of Remaining Fire	50 mm
Min. Cut Length	100 mm

Main Voltage	400 V
Control Voltage	24 V
Installed Power	8 kW
Current	29,2 A
Saw Engine	4 kW
Boron Oil Pump	0,09 kW
Air pressure	6 kg/cm2 (240 l/min)
Saw Speed	20 - 100 By İnverter
Angle Rotation	90°

Saw Diameter	350 mm
Saw Bore Diameter	40 / 50 mm
Pin Holes	2 x Çap 11
TiN Coating	Medium Hard Steel
TiCn Coating	High Stiffness Steel
TiAIN Coating	Stainless steel

Most	9700 mm
Size	2360 mm
Height	1750 mm
Net weight	4125 Kg
Gross weight	4160 Kg

Attachment	Size
ILT 350.pdf	22.29 MB
