Hydraulics and pneumatics are two essential technologies that utilize fluid and gas pressure to perform mechanical work. These systems are integral to a wide range of industries, providing power for various applications such as machinery, automation, construction, and transportation. While hydraulics uses pressurized liquids and pneumatics uses compressed air, both systems have unique properties that make them ideal for different industrial applications.

What are Hydraulics and Pneumatics?

Hydraulics:
- The use of pressurized liquids (typically oil or water) to transmit force and power.
- Offers high force output and precise control.
- Commonly used in heavy machinery, industrial equipment, and construction.
Pneumatics:
- The use of compressed air or gases to generate mechanical motion.
- Offers fast action and clean operation, especially in controlled environments.
- Common in automation systems, robotics, and assembly lines.

Core Components of Hydraulic and Pneumatic Systems

Hydraulic System Components:

Hydraulic Pump:
- Converts mechanical energy into fluid power.
- Types: Gear pumps, piston pumps, and vane pumps.
Actuators (Hydraulic Cylinders):
- Convert hydraulic energy into mechanical motion (linear or rotary).
- Commonly used for lifting, pushing, and pressing.
Valves:
- Control the flow and pressure of hydraulic fluid, directing it to various components.
- Types: Directional valves, pressure relief valves, and flow control valves.
Reservoir:
- Holds the hydraulic fluid and serves as a storage tank for the system.
Hoses and Tubes:
- Carry hydraulic fluid under high pressure to various parts of the system.
Filter:
- Removes contaminants from the hydraulic fluid to prevent system damage.

Pneumatic System Components:

Compressor:
- Compresses air to generate the pressure needed to drive pneumatic systems.
- Types: Reciprocating compressors, rotary compressors, and screw compressors.
Pneumatic Cylinders:
- Convert compressed air into linear motion for tasks like lifting or pushing.
Valves:
- Control the direction, pressure, and flow of air in a pneumatic system.
- Types: Solenoid valves, manual valves, and pressure-regulating valves.

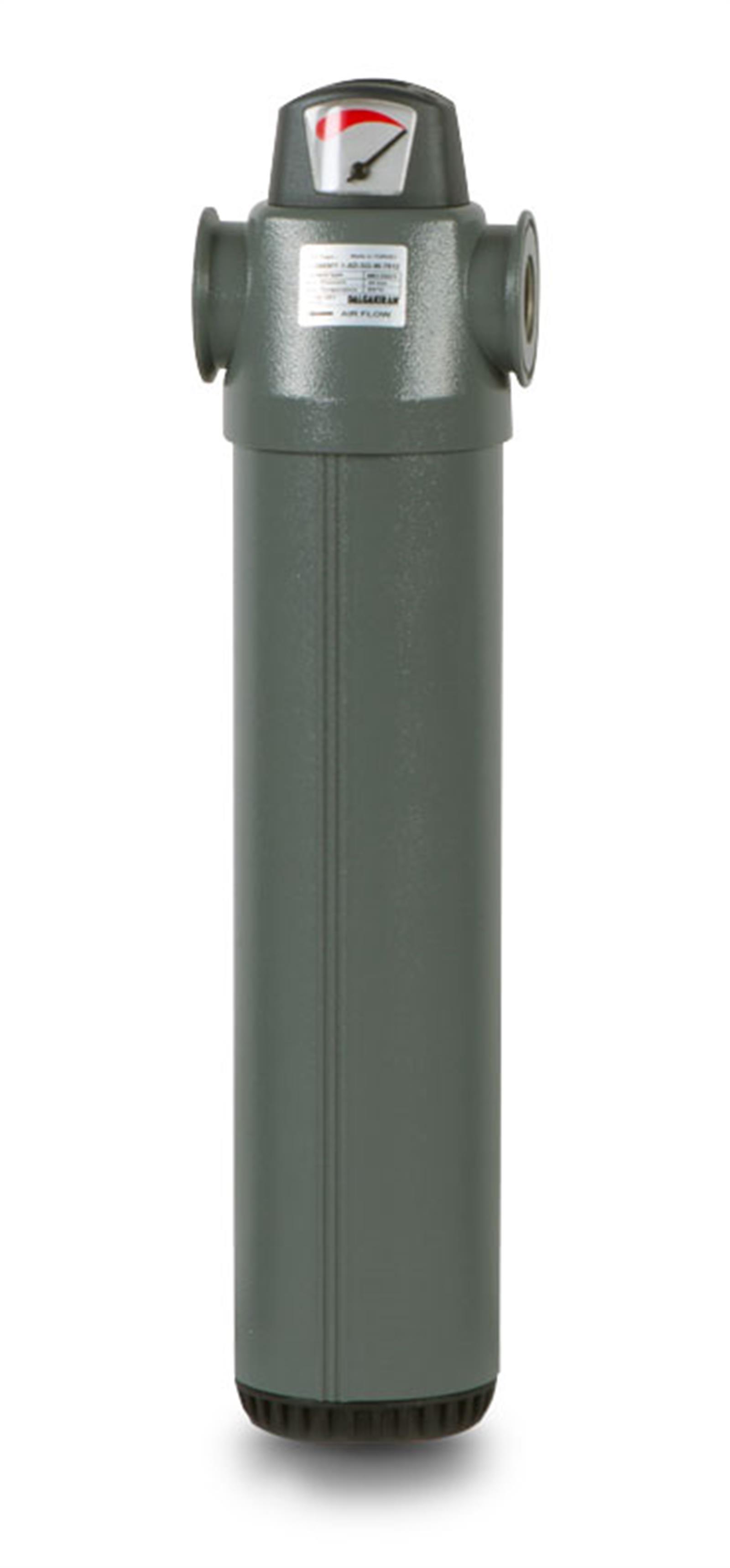

Air Filters and Regulators:
- Filters ensure clean air enters the system, while regulators control air pressure for consistent performance.
Air Tubing:
- Transports compressed air to the different components of the pneumatic system.

Key Applications of Hydraulics and Pneumatics

Hydraulics Applications:
- Construction Equipment: Hydraulic systems are used in excavators, cranes, bulldozers, and forklifts.
- Manufacturing: Hydraulic presses, injection molding machines, and metal forming.
- Aerospace: Used for landing gear, flight control systems, and braking systems.
- Automotive: Hydraulic power steering, braking systems, and suspension systems.
- Marine: Hydraulic steering systems, winches, and cranes on ships.
Pneumatics Applications:
- Automation and Robotics: Pneumatic actuators and cylinders are widely used in automated assembly lines, pick-and-place robots, and packaging machines.
- Food and Beverage: Pneumatic systems are used in bottling, packaging, and sorting.
- Material Handling: Pneumatic conveyors, lifters, and hoists.
- Medical Equipment: Pneumatic devices for patient handling, air-powered surgical tools, and ventilators.
- Textile and Printing: Pneumatics control looms, sewing machines, and printing presses.

Advantages of Hydraulics and Pneumatics

Advantages of Hydraulics:

High Force Output:
- Hydraulics can generate significant amounts of force, making them ideal for heavy-duty applications.
Precise Control:
- Provides accurate and stable movement, which is critical in applications like metal forming or aerospace.
Compactness:
- Hydraulic systems can be designed to be very compact, which allows for powerful systems in smaller machines.
Versatility:
- Can be used for both linear and rotary motion, and operate over a wide range of pressures and speeds.
Energy Efficiency:
- Hydraulics are very energy-efficient, especially in high-power applications.

Advantages of Pneumatics:

Fast Response:
- Pneumatic systems offer quick start/stop responses, making them suitable for high-speed operations.
Clean Operation:
- Compressed air is clean and doesn’t pose the contamination risks that hydraulic fluids may.
Lower Maintenance:
- Pneumatic systems have fewer moving parts, reducing wear and tear and making them easier to maintain.
Flexibility and Simplicity:
- Pneumatic systems are easier to install and modify compared to hydraulic systems, making them ideal for flexible manufacturing processes.
Cost-Effective:
- Pneumatic systems are generally less expensive to install and operate compared to hydraulic systems.

Challenges in Hydraulics and Pneumatics

Hydraulics:
- Leakage: Hydraulic systems can suffer from leaks, which not only waste fluid but can also cause environmental contamination.
- High Maintenance Costs: Due to the complexity and the high-pressure components, hydraulic systems may require more maintenance and repairs.
- Energy Loss: In some applications, energy efficiency can be a concern due to heat generation during fluid pressurization.
Pneumatics:
- Limited Force Capacity: Pneumatic systems are typically not as powerful as hydraulic systems and may not be suitable for heavy-duty applications.
- Compressed Air Costs: The need for compressed air can be costly in terms of energy consumption, especially for large systems.
- Moisture and Contamination: If not properly filtered and regulated, moisture and contaminants in the compressed air can affect system performance.

Emerging Trends in Hydraulics and Pneumatics

Electric Hybrid Systems:
- Integrating electric drives with hydraulic or pneumatic systems to improve energy efficiency and reduce operational costs.
Smart Hydraulic Systems:
- Use of sensors and IoT technology to monitor and control hydraulic systems remotely, improving predictive maintenance and system optimization.
Environmentally Friendly Fluids:
- Development of biodegradable and non-toxic hydraulic fluids to reduce environmental impact in case of leaks.
Miniaturization:
- Smaller and more compact hydraulic and pneumatic systems for use in portable machinery, robotics, and advanced medical devices.
Energy Recovery Systems:
- Use of energy recovery systems to capture and reuse energy in hydraulic and pneumatic circuits, improving system efficiency.

Conclusion

Hydraulics and pneumatics are foundational technologies in modern industrial applications, offering distinct advantages that cater to a wide range of needs. While hydraulics provides high force and precision for heavy-duty applications, pneumatics offers fast, clean, and cost-effective solutions for automated processes. Both technologies continue to evolve with innovations that enhance efficiency, sustainability, and system performance. Whether it's powering construction machinery, automating manufacturing lines, or facilitating clean operations in healthcare, hydraulics and pneumatics remain integral to the global industrial landscape.
