Faster, More Precise, More Environmentally Friendly...

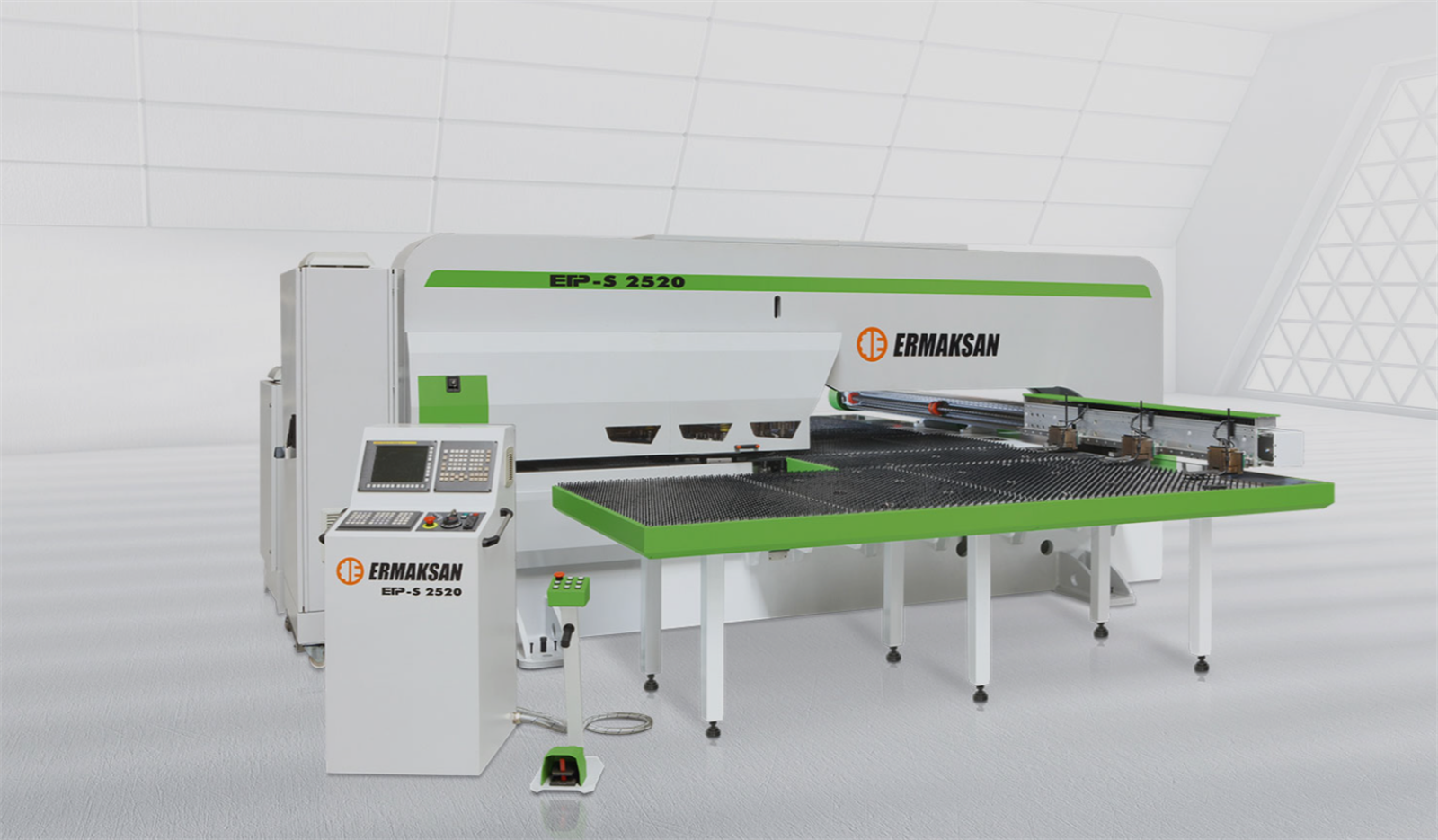

Thanks to its years of experience and brand awareness that does not compromise on quality, ERMAKSAN has taken its place among the leading companies of the market with its punch product range. ETP has crowned the high CNC Turret Punch Press quality with a servo drive that does not use hydraulics, and introduced it to the sector by combining world-renowned electronic and mechanical materials in a single machine.

ETP CNC Servo Turret Punch, which allows various applications in sheets up to 6 mm thickness, has been designed to meet consumer needs for years with its steel construction and monoblock structure.

• Minimal energy consumption
• Oil-free environmentally friendly system
• Direct drive servo punch system
• Minimum noise level
• Flexible programmable stroke structure
• Minimum maintenance cost

RIGID AND STRONG BODY

It has a strong body that has been processed with high precision, and has a dynamic and static rigidity.

BRUSH AND BALL TABLE

A table that can be used together with brush or ball or brush+ball can be offered upon request.

LESS RISK OF DAMAGE

Thanks to Direct Drive Servo technology, less mechanical parts are used and wear is minimized.

ENVIRONMENTALLY FRIENDLY

It is environmentally friendly with low energy consumption as there is no oil cooling requirement, and minimum oil consumption thanks to the servo motor.

LESS NOISE LEVEL

Due to the absence of equipment such as hydraulic pumps, motors and coolers in hydraulic systems, it provides a quieter working environment by eliminating the sounds caused by such equipment.

LOW ENERGY CONSUMPTION

It provides 40% less energy consumption compared to hydraulic punches by keeping the energy consumption at a minimum level during the standby mode.

BARCODE READER

Facilitates the operator's intensive and complex work processes and prevents errors.

Hammer System

SERVO STROKE SYSTEM

Two different impact strengths; 20 tons and 30 tons, are offered.

Safety System

CHAIN PROTECTION AROUND THE MACHINE

This is the chain protection system that ensures safety around the machine.

LIGHT BARRIER

Ensures that access to a hazardous area is secured.

Scrap Box

WHEELED SCRAP BOX

Prevents the cut sheet metal and scrap from getting mixed.

Station

27 Stations

Different contours can be cut at desired angles with 3 automatic index stations in the turret. 11A+10B+1C+2D+(2B+1C AUTO INDEX)

33 Stations

With 3 automatic index stations in the turret, different contours can be cut at desired angles, and optionally, 8A, 3B or 1C tools can be attached to these index stations, and many different tool combinations can be obtained. 15xA+12xB+2xC+1xD+(3xD AUTO INDEX)

MULTITOOL WITH 3 AND 8 STATIONS

Allows different tool combinations.

Clamp

AUTOMATIC HOLDER POSITIONING SYSTEM

Allows to easily move the sheet metal on the table.

Controller

GE FANUC Oi-PF

GE FANUC Oi-PF industrial control unit with graphic display has a very functional and practical interface.

Machine Axis

FANUC SERVO SYSTEM

5 axes (X, Y, T, CA, CB) Fanuc servo system is used.

Nesting

AUTO NESTING

This is the function used to automatically duplicate and nesting the pieces on the CNC.

Pneumatic System

AIR BLOWING AND LUBRICATION SYSTEM

Airblow provides lubrication of tools and extends tool life.

Table

WITH BRUSH AND BALL

Thanks to its special brushed design, this table ensures that the workpiece surface is manufactured without damage

Software

METALIX

Designed to shorten the learning time, this software allows users to produce pieces from the first day with its simple and user-friendly interface.
