| Model |
Pressure |
Capacity* |
Motor Power |
Connection Size |
Dimensions (mm) |
Weight |
Noise Level |
|
|
|
|
|
|
| Minimum |
Maximum |
|
|
|
|
|
|
|
|
|
|
|
|
| |
bar |
psi |
m3/min |
cfm |
m3/min |
cfm |
kW/HP |
|
Lenght |
Widht |
Height |
kg |
dB (A) |
| |
7,5 |
110 |
1,63 |
58 |
6,3 |
222 |
|
|
955 |
1095 |
1580 |
|
|

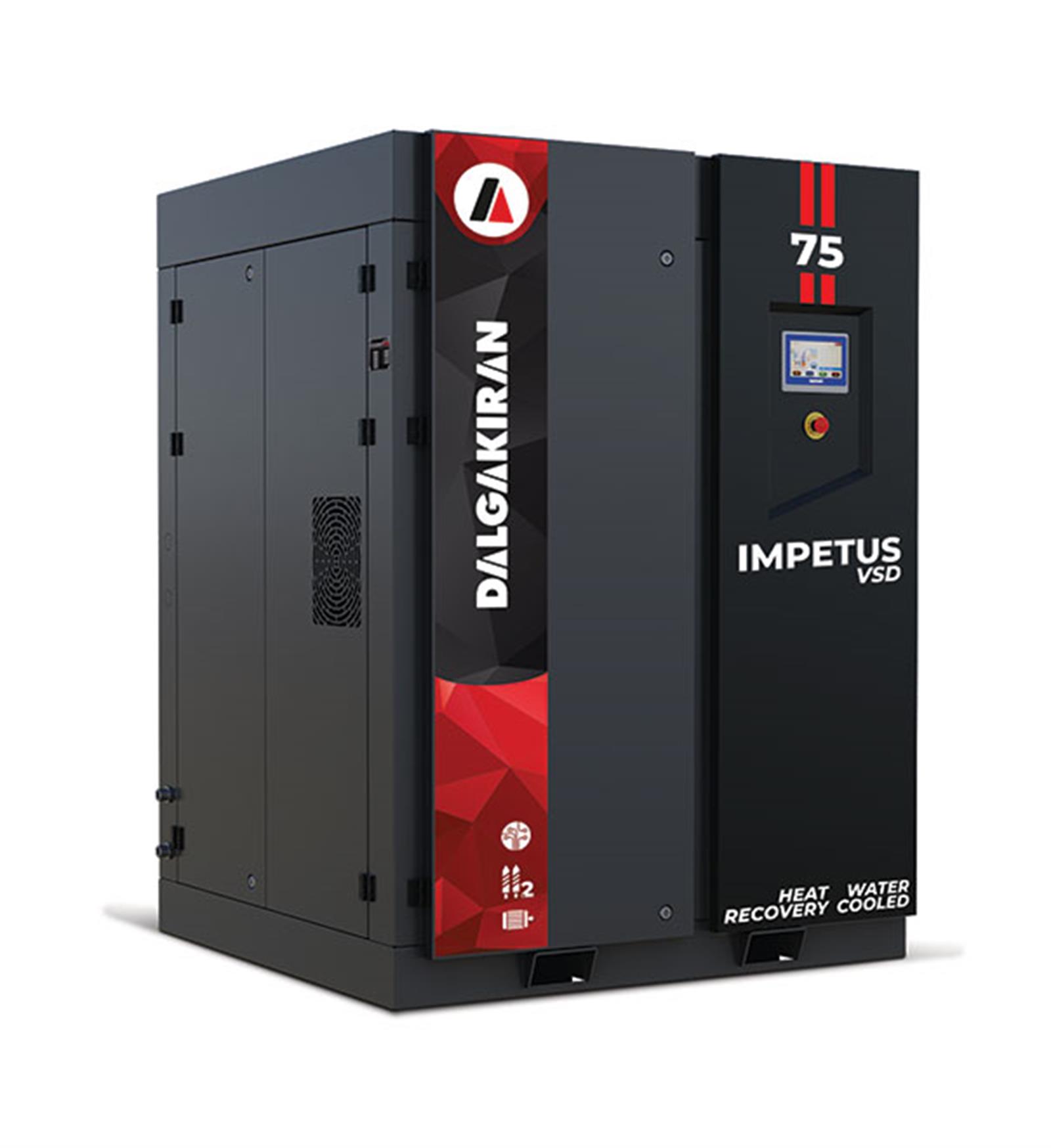

| IMPETUS VSD 30 |
8,5 |
125 |
1,6 |
57 |
5,86 |
207 |
30/40 |
G 1 1/4" |
955 |
1095 |
1580 |
875 |
72 |
| |
10 |
145 |
1,57 |
58 |
5,36 |
189 |
|
|
955 |
1095 |
1580 |
|
|
• Two-stage screw produces energy efficiency by up to 10%
• Higher flow rate by up to 10%.
• Thanks to low compression rate low axial and compression forces
• Zero transmission losses by compact direct power transmission
• No requirement for a power transmission element results in a compact design
• Low axial and compression forces due to low compression ratio between screw blocks
• Thanks to low rotor speeds, a long service life
• Thanks to two-stage compression, low noise and vibration levels
• Ultra Premium IE5 energy efficiency-class electric motors
• Internal Permanent Magnet Motor (IPM)
• Compact design
• F-class insulation
• Optimum oil cooling at all speeds for high efficiency
• Low noise levels
• Grease-free lubricated motor bearings
• High acoustic performance in noise dampening
• Insulated cold air intake for energy efficiency
• High cooling efficiency in compact air and oil heat exchangers
• Suitable design for operating up to 45oC
• Radial fan for high cooling efficiency (37 kW and above)
• Low noise level with low speed radial fans
• Cooling fan driver for maximum energy efficiency
• Effective separator elements keep the amount of oil in the outlet air low (1-3 mg/m³) for high-quality compressed air
• Sep-n-sep type separator with enlarged surface area
• Easy to service
• High efficiency three stage air-oil separation system
