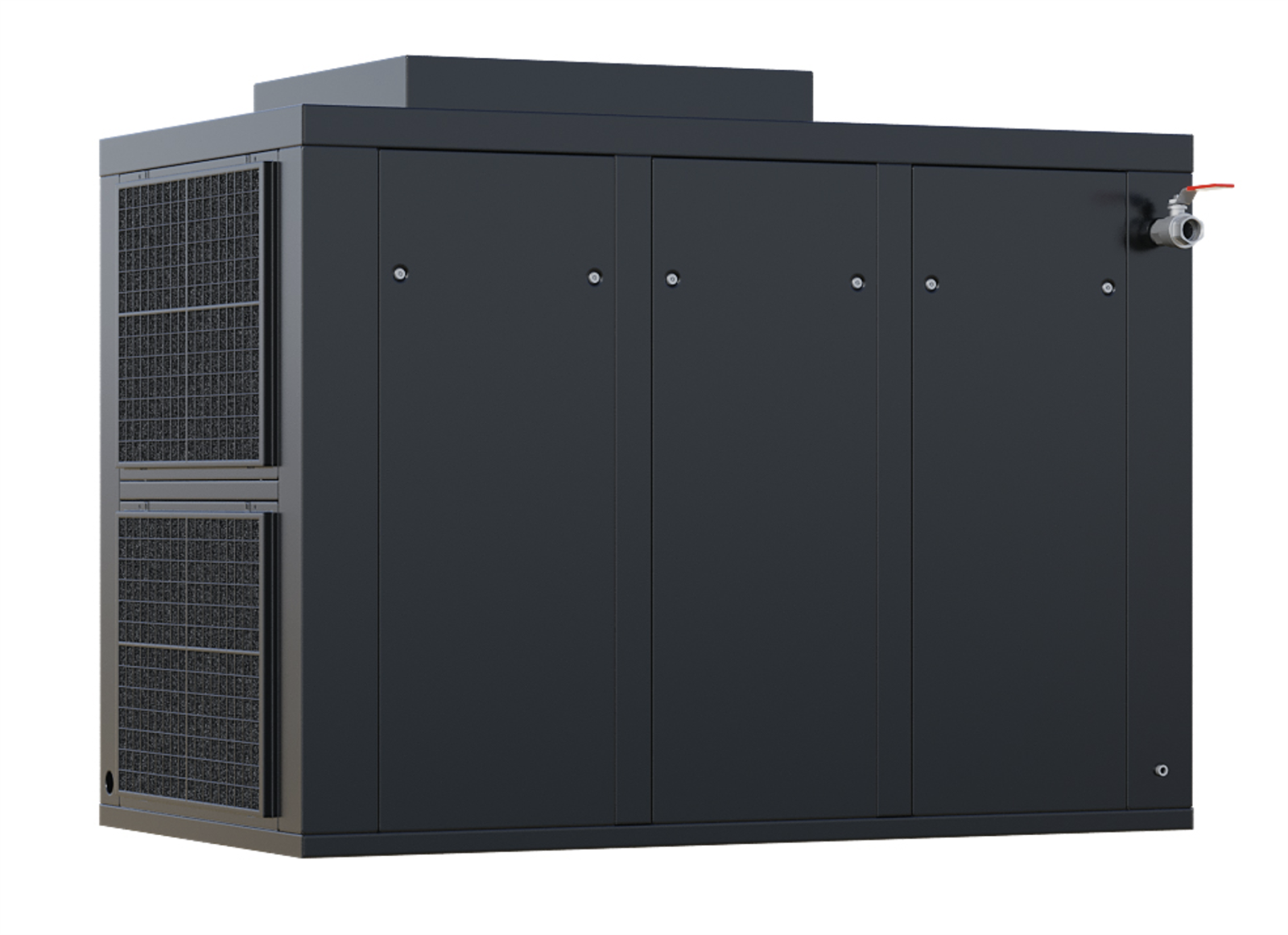

Dalgakiran Inversys 132 Plus Variable Speed Rotary Screw Compressor

Model	Pressure		Capacity				Motor	Connection	Dimensions (mm)			Weight	Noise Level
			Minimum		Maximum
	bar	PSI	m³/min	SCFM	m³/min	SCFM	kW/HP		Width	Length	Height	kg	db(A)
Inversys 132 Plus	7,5	110	6,9	244	24,3	858	132/180	2 1/2"	2750	1805	2000	2555	78
	10	145	6,8	239	20,3	717
	13	190	9,74	344	18,1	639

• Up to 65% energy saving*
• Operation at constant output pressure value
• Wide operating pressure range (5-14 bar)**
• Long component life cycle thanks to soft start
• Protection against the adverse effects of peak currents
• Effective and energy efficient compressed air production even in case of highly variable compressed air requirements

• IE3 efficiency-class electric motor
• Direct coupled (1:1) with the elastic coupling
• Elasting coupling for a maintenance free long-lasting and efficient power transmission system
• Variable-speed starting with frequency converter
• High temperature protection for motor bearings (Inversys 15-315 Plus)

• A durable and specially selected patented screw block that provides high capacity air according to the capacity needs of each model
• New rotor profiles for reduced loss air production
• Next gen bearing design for improved load bearing capabilities

• Spin-on or immersion type separator design depending on the product series
• Easy-to-detach spin-on type separator (Inversys 5-37 Plus)
• High-efficiency immersion type separator with long service life (Inversys 45-315 Plus)

• Internal ModBus communication
• User-friendly on-screen interface
• Without the need for an external main controller, Ability to co-aged work synchronized with Master/Slave for up to 2 compressors in 22 kW and below models, Multi-operation capability of up to 5 compressors in 30 kW and above models
• The ability to perform both pressure and temperature PID at the same time with its Dual PID feature (30 kW and above)

• Temperature controlled axial fan (Inversys 5-22 Plus)
• Optimum working temperature thanks to inverter controlled fans, provides additional energy efficiency (Inversys 30-315 Plus)
