Electro-hydraulic bending machine for bending with mandrel system

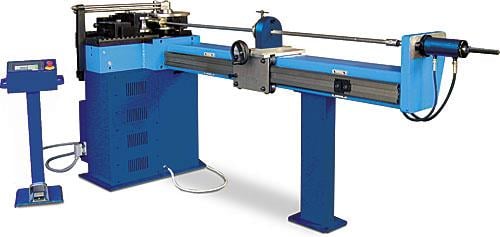

The UNI90 is an accurate and powerful bending machine able to bend large diameters pipes as well as thin and delicate ones. The optimal and constant bending radii do not deform bent pipes: it is the ideal machine to satisfy every user’s exigency in the plumbing, nautical, hydraulic, industry and plants’ installation in general, above all in the ornamental field.

• Control panel, simple and clear
• Mechanical spindle for the bending plan regulation.

STANDARD VERSION			CODE
Electrohydraulic digital UNI 90, 380V/50Hz with automatic hydraulic device for the closing and opening of locking devices and bending tools, with 3 metre long mandrel arm kit with hydraulic device for the mandrel extraction, plane regulator, notches,mandrel rod diam. 20mm.			9210503
With 4 metre long mandrel arm			9210504
With 5 metre long mandrel arm.			9210505
With 6 metre long mandrel arm			9210506

TECHNICAL FEATURES
- Spheroidal cast ironed body on metal steelwork base.
- 3-phases 380V 50Hz asynchronus, self-braking motor (different voltages can be supplied on request) 2 speeds 4kw power with inverter.
- Digital electronic control board with microprocessor and display to set and control the required bend and recovery angle. It can store up to 50 bending programs Each program can memorize up to 9 bending angles in sequence.
- Automatic return to stroke end.
- Switch panel low tension (24V.).
- 180°'a1 Maximum allowed bending angle.
- Computerized hydraulic system per the closing and opening of locking and bending tools.
- The mandrel’s extraction can be set up for a high definition of the bend.
- Dimensions: (only machine) length 110mm, width 700mm, height 1310mm
- Weight: kgs.970

TYPE OF PIPE			WITH MANDREL
			Ø mm	Ø mm
Hard and soft copper pipes, annealed brass pipes			90	3
Steel pipes for electrical installations			90	2
AISI 304/316 stainless steel pipes			80	3
Hydraulic steel tubes ST. 35,4			90	3
Furniture tubes			90	2
FE boiler pipes			90	2
Aluminium pipes			90	4
Gas pipes UNI 5745			3"	3
Square pipe			70x70	3
Minimum radi			2 volte Ø / 2D
