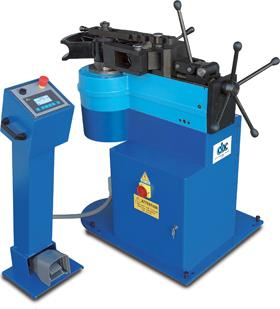

Cbc UNI 76 Universal Electric Bending Machine (UNI 76)

Universal electric bending machine

The UNI76 is an accurate and powerful bending machine able to bend large diameters pipes. The optimal and constant bending radii do not deform bent pipes: it is the ideal machine to satisfy every user’s exigency in the plumbing, nautical, hydraulic, industry and plants’ installation in general, above all in the ornamental field.

TECHNICAL FEATURES
- Spheroidal cast ironed body on metal steelwork base.
- 3-phases 380V 50Hz asynchronus, self-braking motor (different voltages can be supplied on request)-2 speeds with 3/4Kw power. Digital touchscreen electronic control board with multi-language microprocessor and display to set and control the required bend and recovery angle. It can store up to 50 bending programs. Each program can memorize up to 9 bending angles in sequence.
- Automatic return to stroke end.
- Switch panel low tension (24V.).
- 180°'a1 Maximum allowed bending angle.
- Dimensions: length 1000 mm, width 710 mm, height 1100 mm
- Weight: kgs.430

STANDARD VERSION			CODE
Digital electric UNI 76 380V/50Hz supplied with quick guide positioner and 3 interchangeable outlet shafts, reinforcing tie-rod and guide support reduction			9200676.1
TYPE OF PIPE			WITHOUT MANDREL
			Ø mm	Ø mm
Hard and soft copper pipes, annealed brass pipes			76	8
Steel pipes for electrical installations			76	6
Stainless steel AISI 304/316 pipes			76	4
Hydraulic steel tubes ST. 35,4			76	6
Furniture tubes			76	6
FE boiler pipes			76	6
Aluminium pipes			76	8
Gas pipes UNI 5745			3"	Standart
Square pipe			60x60	3
Standard bending radi			3/4 volte Ø  /  3D and/y 4D

• With two additional interchangeable shafts in the standard equipment.
• Special formers diameter 2”1/2Gas – 3”Wht
• Counterformer diameter 2”1/2 gas - 3” WHT
• Guide for twin-rollers (it is supplied without rollers)
• Counterform support reduction (in dotation)
