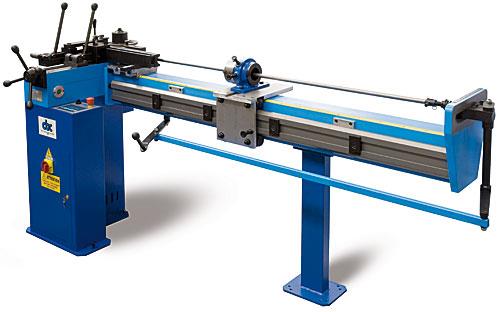

Cbc UNI 70/C Digital Electric 3-Phase Bending Machine (UNI 70/C)

Digital electric 3-phase bending machine

The digital UNI 70/C is an accurate and powerful bending machine to bend pipes with large diameters as well as thin and delicate tubes with optimal and constant bending radii and without any pipe deformation. It is suitable to satisfy the bending requirements of the user operating in the plumbing, nautical, hydraulic, industrial, and plant engineering sector.

• Mechanical spindle for the bending plane regulation.
• The 2 interchangeable outlet shafts of the standard equipment.

GENERAL FEATURES
- Spheroidal graphite iron body on metal steelwork base
- Three-phase, asynchronous, self-braking motor 380V/50 Hz (different voltages on request), 2 speeds, 1,5/2,2 Kw power
- Digital touchscreen electronic unit with multi-language microprocessor and display for programming and controlling the required bending angle. It is possible to store up to 50 bending programmes with the possibility to store up to 9 sequential bending angles for each programme.
- Automatic return at the end of stroke
- Low tension control panel (24V)
- maximum bending angle: 180°
- It is equipped with 1 quick guide positioning device and 2 interchangeable outlet shafts
- Dimensions: length 810 mm, width 400 mm, height 1100 mm.
- Weight: kg. 210

STANDARD VERSION			CODE
Digital electric UNI 70/C 380V/50Hz with quick-guide positioner and 2 interchangeable outlet shafts with 2 metre long mandrel arm with locking jaw, mandrel extraction device, plane regulator, shoulders, slider base and wiper-die support, mandrel rod d. 20.			9210002
With 3 metre long mandrel arm.			9210003
With 4 metre long mandrel arm			9210004
With 5 metre long mandrel arm.			9210005
With 6 metre long mandrel arm			9210006
TYPE OF PIPE			WITH MANDREL
			Ø mm	Ø mm
Hard and soft copper pipes, annealed brass pipes			50	4
Steel pipes for electrical installations				2
AISI 304/316 stainless steel pipes			50,8	3
Hydraulic steel tubes ST. 35,4				4
Furniture tubes			50	3
FE boiler pipes			50	4
Aluminium pipes			50	8
Gas pipes UNI 5745				Standard
Square pipe			40x40	4
Minimum radi			2 volte Ø / 2D
