Cbc UNI 63 Digital Electric 3-Phase Bending Machine (UNI 63 D)

Digital electric 3-phase bending machine

Digital, electric, 3-phase bending machine, quick, powerful and precise. It is the suitable machine to bend thin and delicate pipes with optimal and constant bending radii, with no deformation on bent pipes.

GENERAL FEATURES
- Cast iron body based on structural steelwork
- Asynchronous motor hp 1,5, 400v/50hz (different voltages on request)
- Digital touchscreen electronic unit with multilanguage microprocessor for programming, controlling and recovering the bending angle. it is capable of storing 50 bending programs with the possibility to select 9 sequential bending angles for each program.
- Maximum bending angle 180°
- Low tension printed circuit board (24v.)
- bending angle regulation
- Electro-brake
- Supplied with 1 interchangeable outlet shaft d.32 (code 544455); one reduced shaft (code 544454) optional.
- Weight & dimensions: only machine kg. 120
- Length: 740mm, width: 900mm, height: 1000mm

• Reduced shaft for bending with radii less than 30 mm.
• Shaft d.32 (square) for bending with standard radii

STANDARD VERSION			CODE

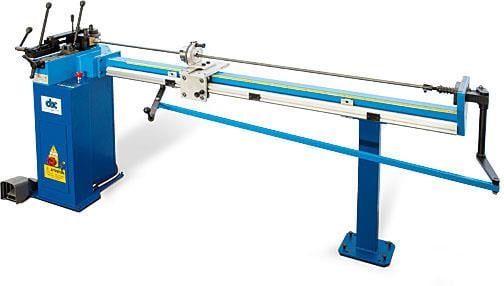

UNI 63 digital electric 3phase bending machine 400v/50hz with two interchangeable outlet shafts, quick guide positioner device, guide’s support reduction for reduced shaft, foot-pedal and base with mandrel kit 1mt long (usefull length 0,55mt) complete with locking pipe device, mandrel’s extraction device, bending plan regulator, shoulders, base fo r slider, wiper-die supports and mandrel rod d.20.			9210341
With mandrel arm kit 2mt (usefull length 1,55 mt)			9210342
With mandrel arm kit 3mt (usefull length 2,55 mt)			9210343
With mandrel arm kit 4mt (usefull length 3,55 mt)			9210344
TYPE OF PIPE			WITHOUT MANDREL
			Ø mm	Ø mm
Hard and soft copper pipes, annealed brass pipes			35	3
Steel pipes for electrical installations
Stainless steel AISI 304/316 pipes			30	2
Hydraulic steel tubes ST. 35,4
Furniture tubes			35	2
FE boiler pipes
Aluminium pipes
Gas pipes UNI 5745			1"	Standart
Double coated aluminium pipe
Minimum radi			2 volte Ø / 2D
