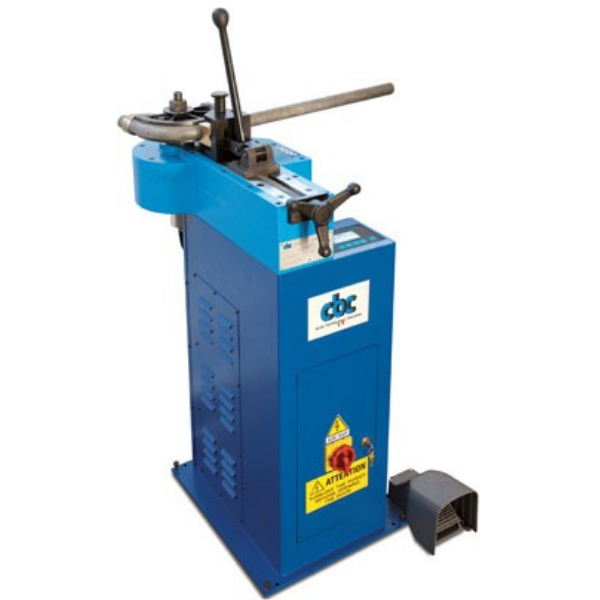

Cbc UNI 63 Digital Electric 3-Phase Bending Machine (UNI 63)

Digital electric 3-phase bending machine

Digital, electric, 3-phase bending machine to bend any kind of pipe, diameter and thickness. It has been conceived to realize and satisfy the various exigencies of operators in the plumbing field, nautical, hydraulics, industry and installations in general.

GENERAL FEATURES
- Cast iron body based on structural steelwork
- Asynchronous motor hp 1,5, 400v/50hz (different voltages on request)
- Digital touchscreen electronic unit with multilanguage microprocessor for programming, controlling and recovering the bending angle. it is capable of storing 50 bending programs with the possibility to select 9 sequential bending angles for each program.
- Maximum bending angle 180°
- Low tension printed circuit board (24v.)
- Bending angle regulation
- Electro-brake
- Supplied with 1 interchangeable outlet shaft d.32 (code 544455); one reduced shaft (code 544454) optional.
- Weight & dimensions: only machine kg. 120
Length: 740mm, width: 900mm, height: 1000mm

• Reduced shaft for bending with radii less than 30 mm.
• Shaft d.32 (square) for bending with standard radii
• UNI 63, version complete with moving arm.

STANDARD VERSION			CODE
UNI 63 digital electric 3-phase bending machine 400v/50hz with quick guide positioner device, foot-pedal and base			9200490
TYPE OF PIPE			WITHOUT MANDREL
			Ø mm	Ø mm
Hard and soft copper pipes, annealed brass pipes			54	1,5
Steel pipes for electrical installations			50	2
Stainless steel AISI 304/316 pipes			35	3
Hydraulic steel tubes ST. 35,4			54	4
Furniture tubes			54	3
FE boiler pipes			54	4
Aluminium pipes			54	5
Gas pipes UNI 5745			1"1/2	Standard
Double coated aluminium pipe			63	Standard
Standard bending radi			3/4 volte Ø  /  3D and/y 4D
