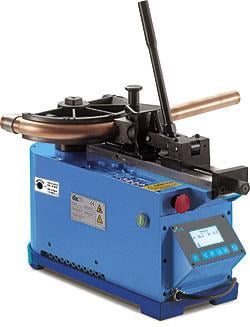

CBC UNI 60 A Digital Electric Bending Machine (UNI 60 A D)

Digital electric bending machine

UNI 60 digital, an accurate and powerful bending machine able to bend large diameters as well as thin and delicates pipes with optimum and constant bending radii and without any pipe deformation.

UNI 60 digital, version complete with moving plane of bend and universal base.

TECHNICAL FEATURES

- Aluminium body
- Asynchronous motor HP 1,30 220V 50 HZ (different voltages on request) 2800 RPM
- Digital touchscreen control panel with multi-language microprocessor for programming the angle of bend. Capable of storing 9 bending with 9 bend per program
- Low tension electronic schedule (24V)
- Bending angle regulation
- Electrobrake
- Automatic return to stop
- Dimensions: lenght 520 mm, width 210 mm, height 410 mm (without stand)
- Weight kg. 60

STANDARD VERSION			CODE
Electric digital UNI 60 A 230V-50Hz with quick guide positioning device without stand.			9200345.4
TYPE OF PIPE			WITHOUT MANDREL
			Ø mm	Ø mm
Hard and soft copper pipes, annealed brass pipes			54	4
Steel pipes for electrical installations			50	2
Stainless steel AISI 304/316 pipes			35	3
Hydraulic steel tubes ST. 35,4			54	4
Furniture tubes			54	3
FE boiler pipes			54	4
Aluminium pipes			54	5
Gas pipes UNI 5745			1"1/2	Standard
Double coated aluminium pipe			63	Standard
Standard bending radi			3/4 volte Ø  /  3D and/y 4D
