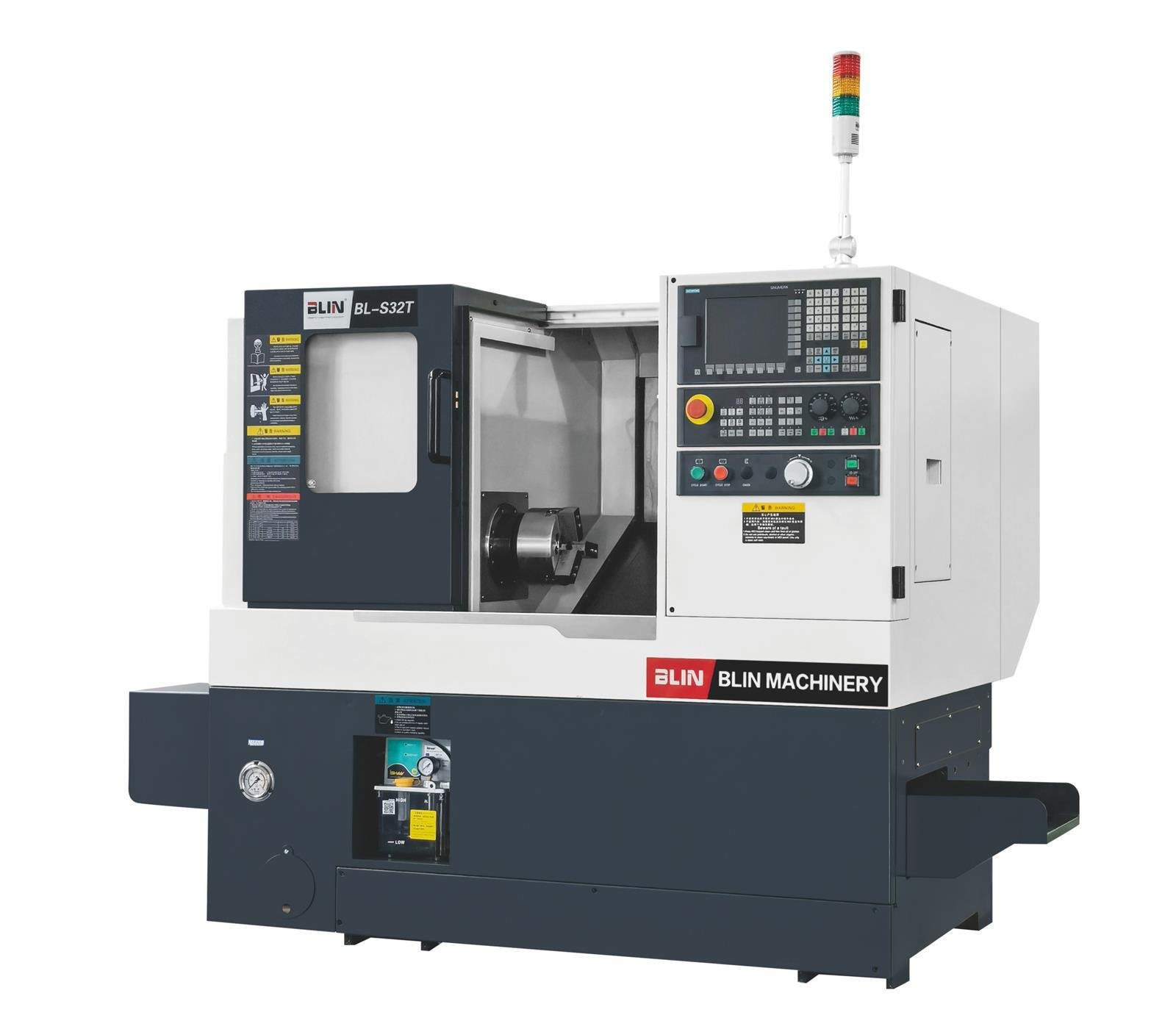

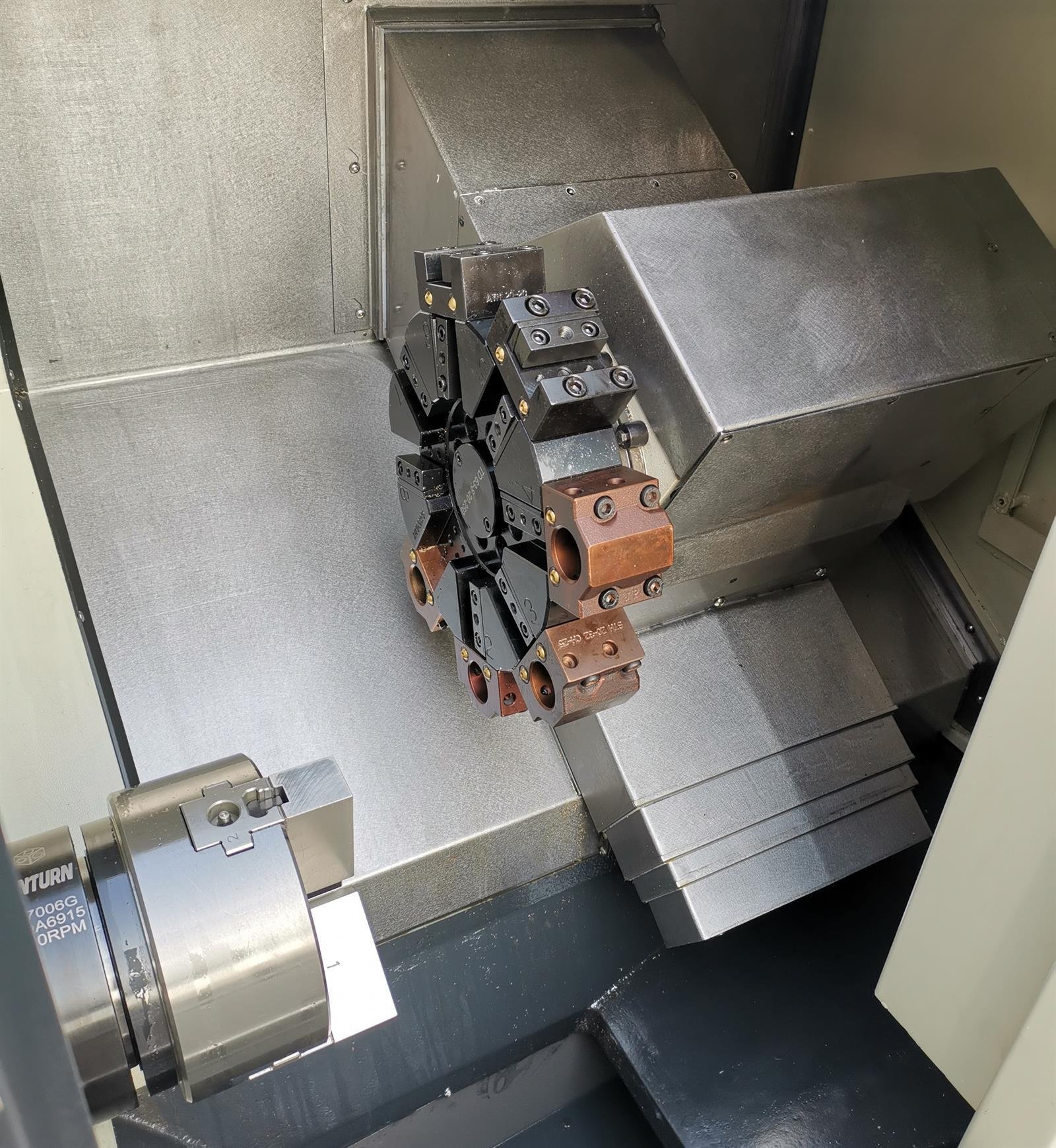

S PRECISE Series TAIWAN technology 5''/6'' collet/chuck Gang tool/8T tool turret Without tailstock
Standard configuration: SIEMENS 808D ADVANCED CNC controller Hydraulic collet(S32)/hydraulic chuck(S32T) Gang tool(S32)/8 station Hydraulic-servo tool turret(S32T)

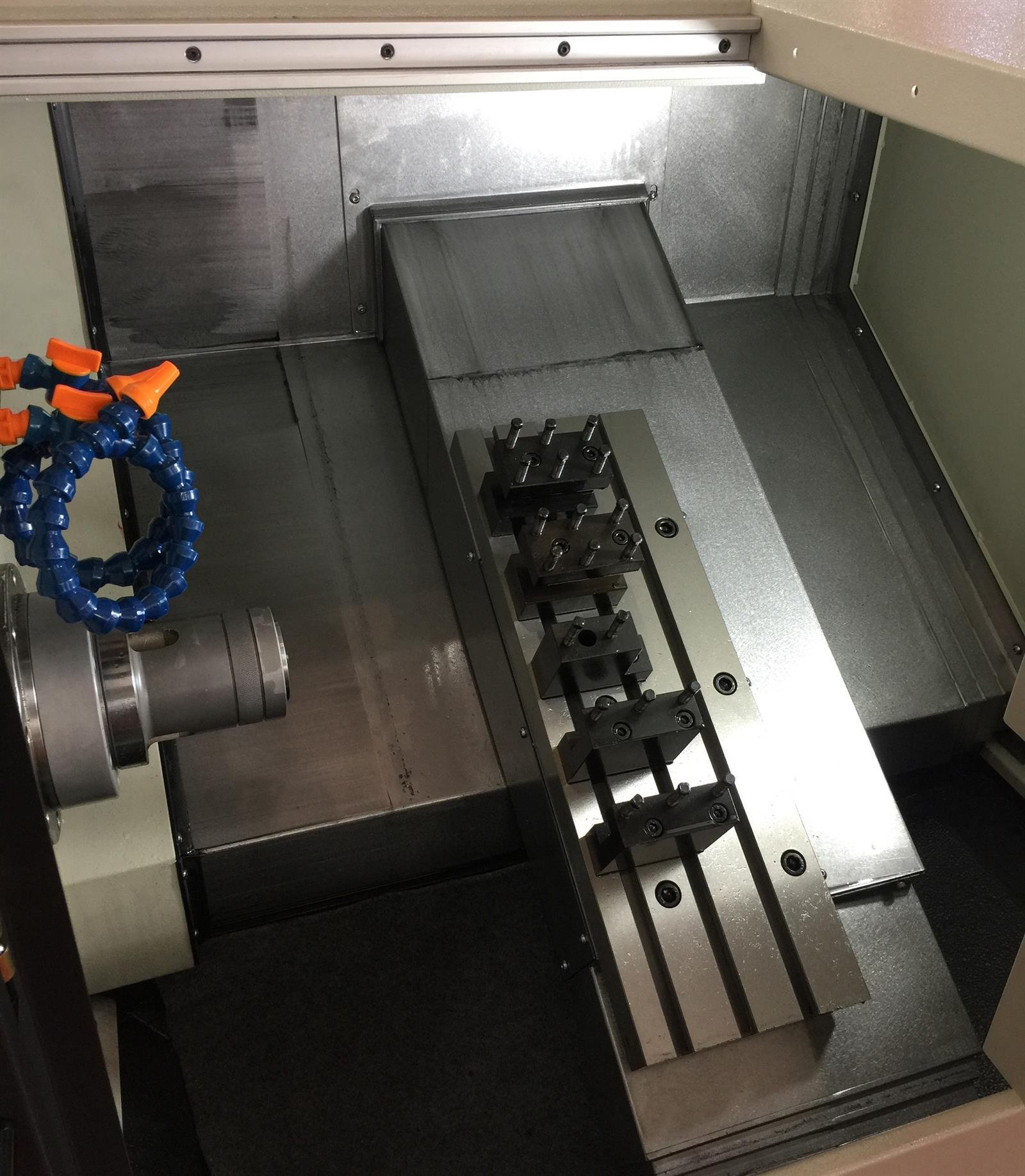

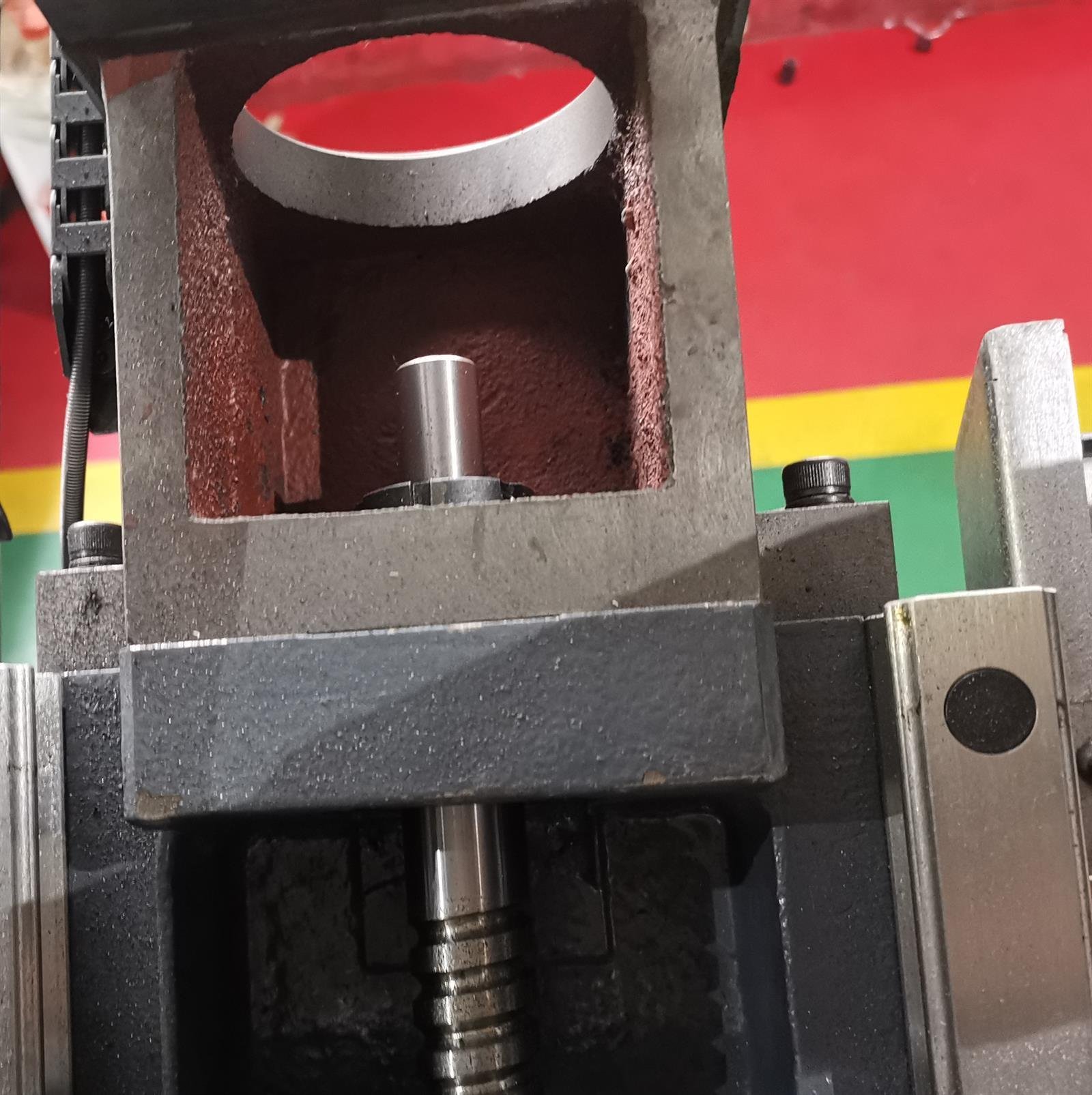

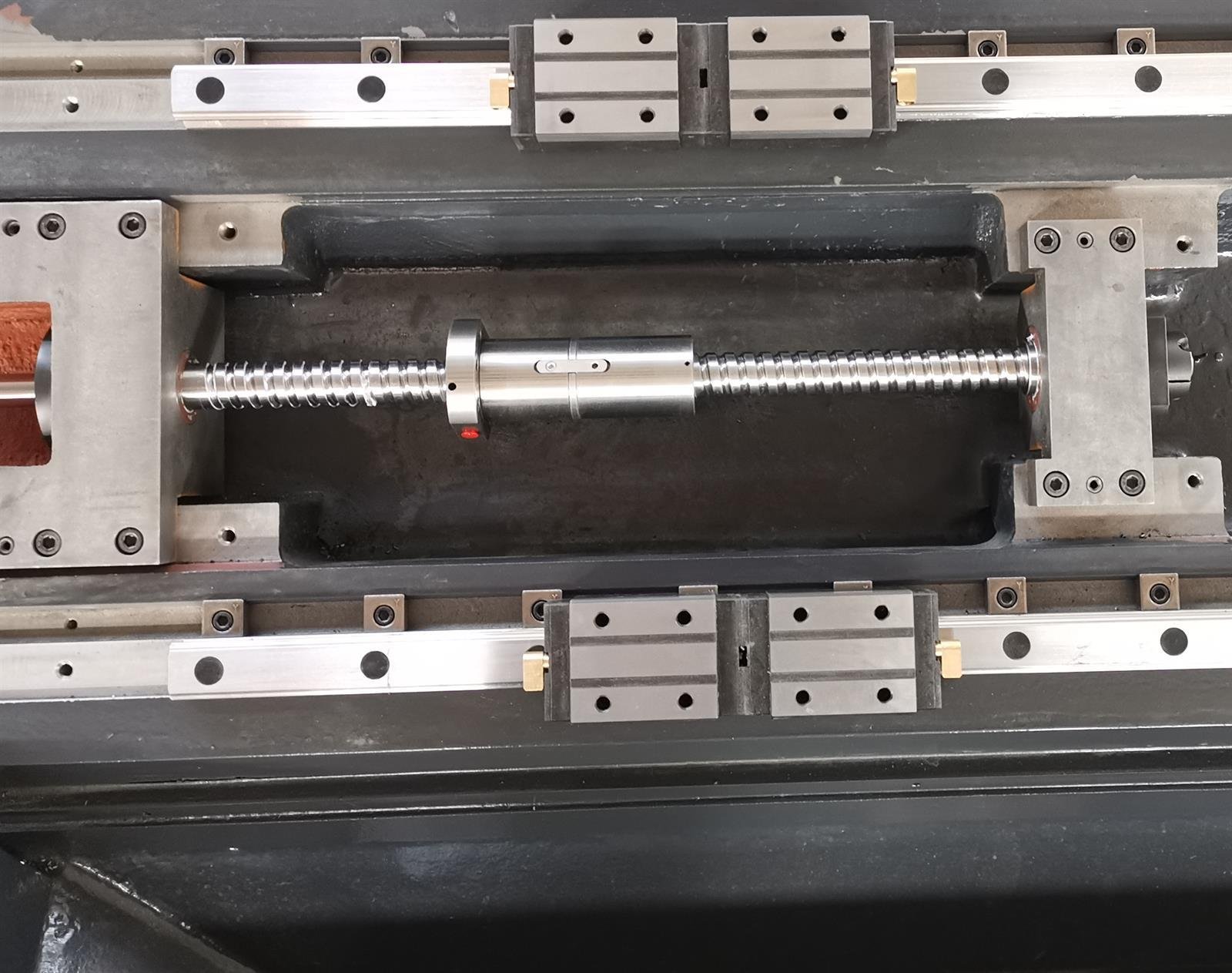

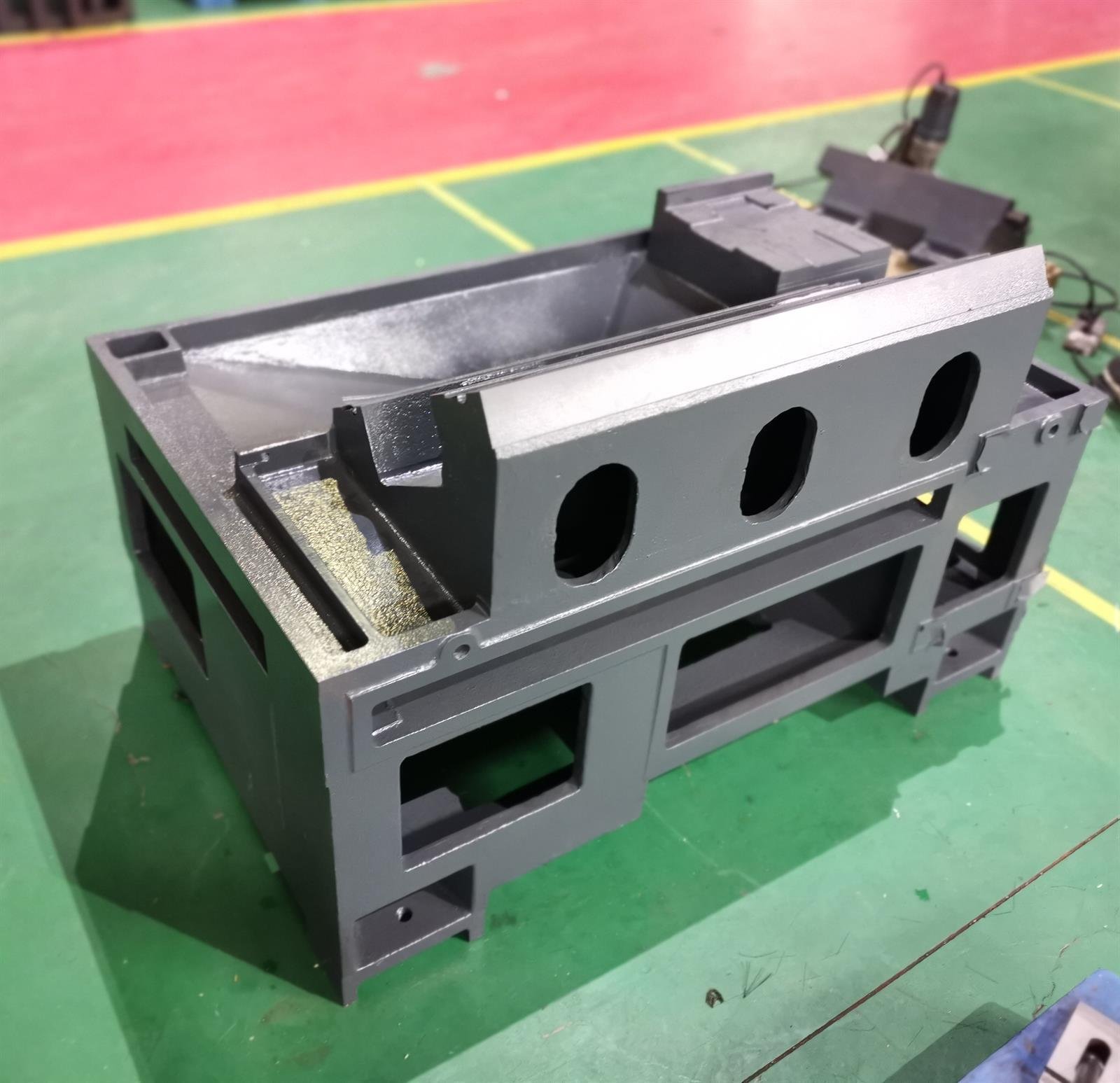

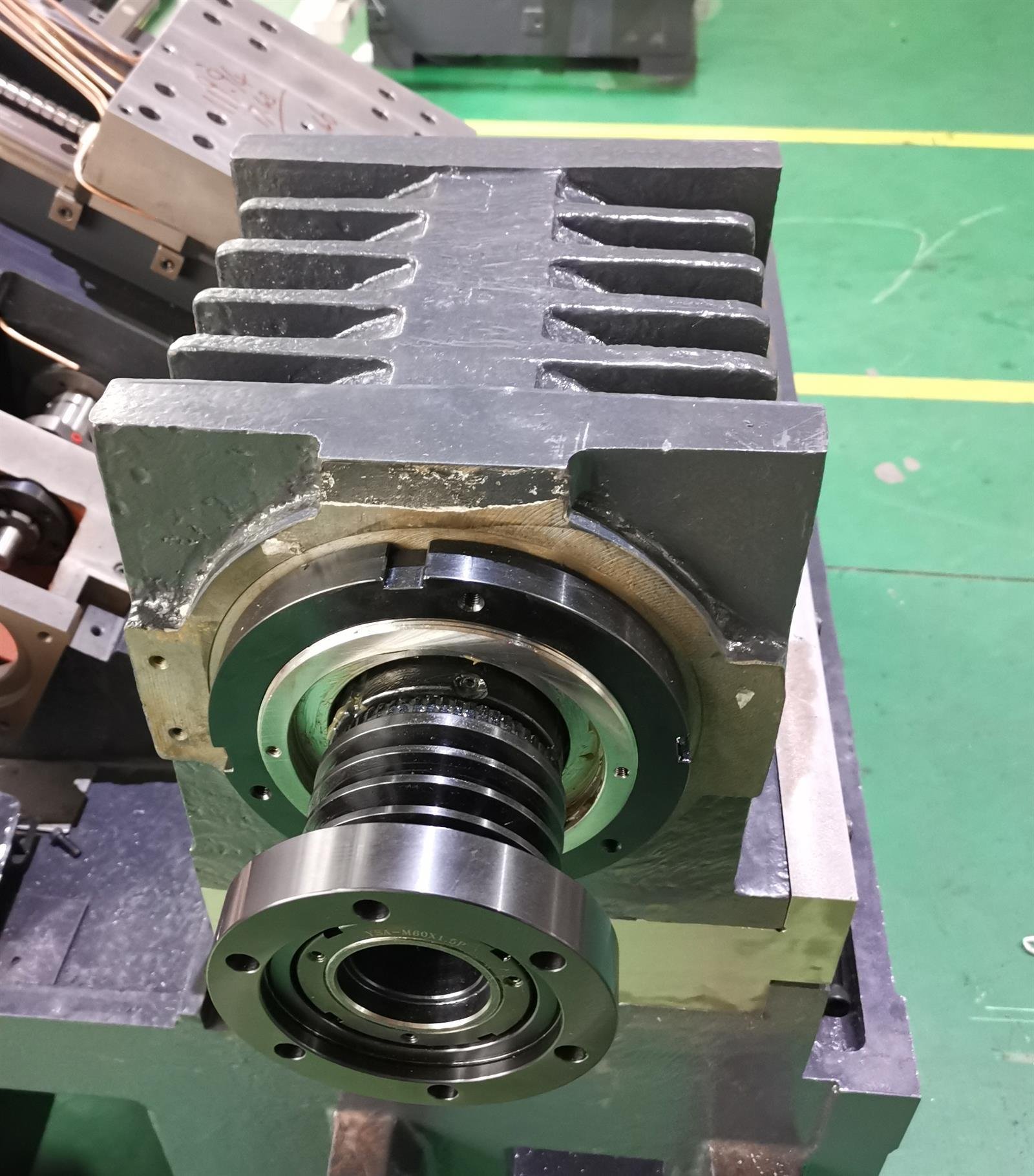

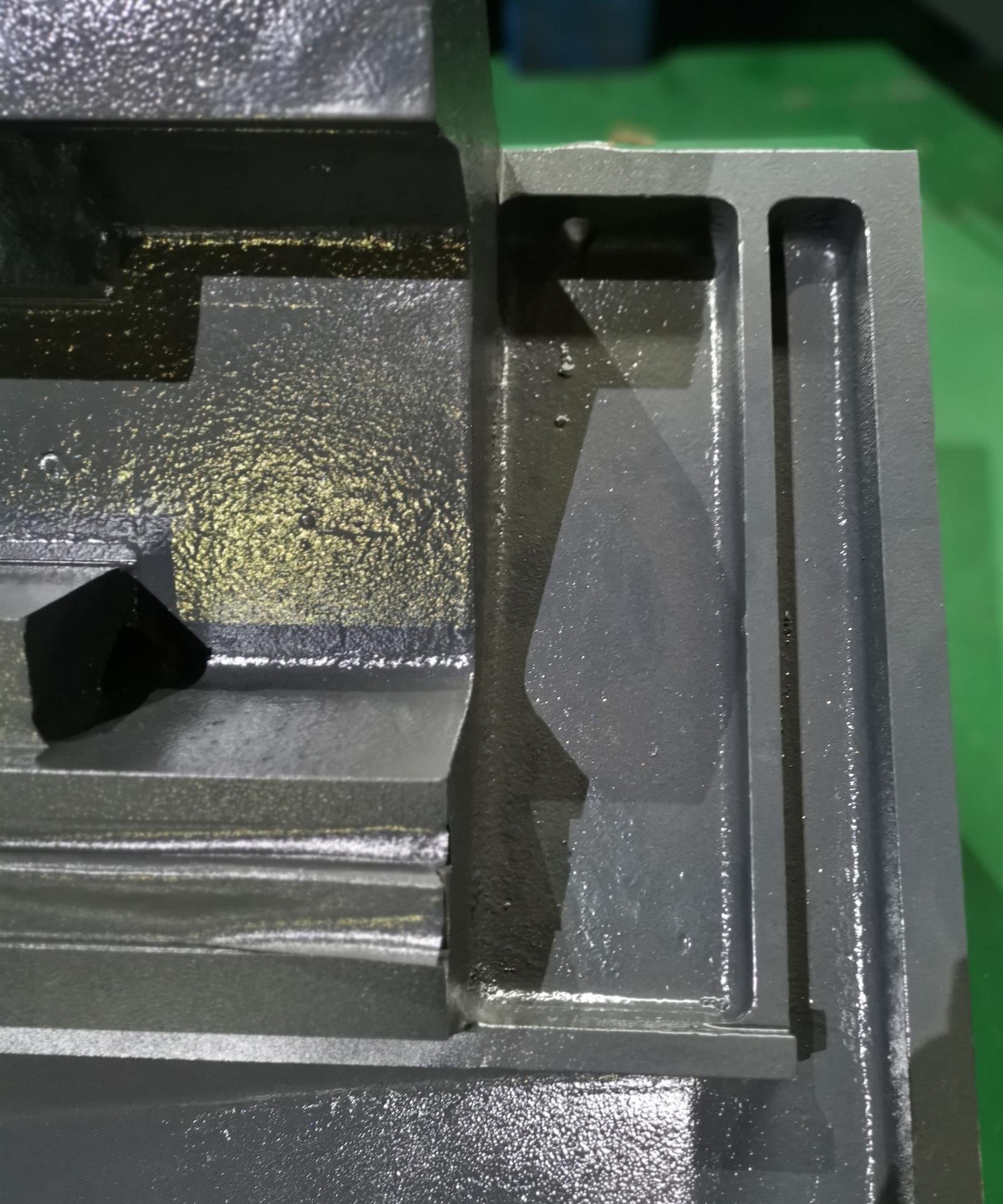

Features: New generation high precision slant bed cnc lathe after optimization based on old S32/32T model S32 mount gang tool device, S32T mount 8 station HYDRAULIC-SERVO tool turret. Super compact structure(similar as JAPAN machine), big inside space, modern appearance Adopt TAIWAN technology, designed by TAIWAN engineer, most parts adopt GERMANY/JAPAN/TAIWAN brand. Adopt 30°mono-block slant bed design, high rigidity, good machining flexibility,easy for chip conveying Adopt modularization design, has strong extended function, easy for various especial configuration choice, such as tool setter, robot etc. Adopt HT300 resin sand cast iron, after aging treatment and FEA analysis, small distortion, good torsional strength, good heat stability. Frame adopt oil-coolant separation design, adopt independent coolant tank Adopt high precision integral spindle unit, spindle motor adopt high performance servo motor, big output torque,high speed,wide adjustment range Adopt high precision pre-stretched ball screw(double-nuts), coupled with feeding motor directly by linkager, no gap,high transmission rigidity, can realize μ class precise turning. Adopt high precision wide linear guideway, high rigidity and long using lifespan, fast moving speed, good accuracy holding, suitable for precise machining
* As option
Main parts list:
