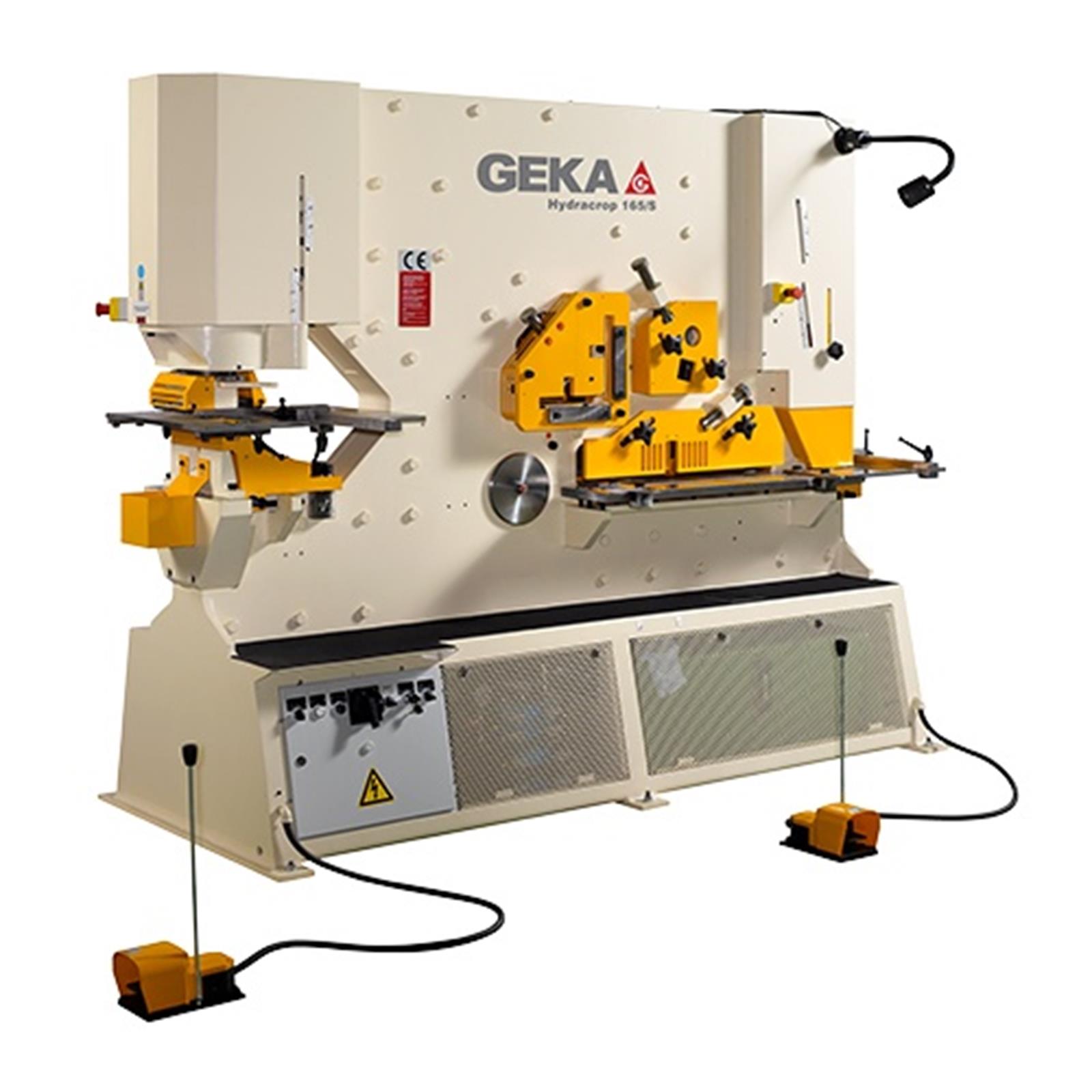

Hydracrop 165 Two Cylinder Ironworker Machines for Cutting and Shearing ( Hydracrop 165 Two Cylinder Ironworker Machines fo)

2 Cylinders Hydraulic ironworker machine with 2 working areas and 5 workstations.

Hydracrop 165 is one of Geka´s two-cylinder Ironworker machines Hydracrop series. This machine can punch, notch, cut and shear different metals such as steel. It has a punching power of 165 tons.

Hydracrop 165 is an Ironworker with two cylinders, this means that there are two working areas that can be used simultaneously. As a result, you can perform punching, cutting and shearing tasks at the same time. The 5 workstations included in Hydracrop 165 are the following ones:

• Punching.
• Angle shearing.
• Flat bars shearing.
• Bars cutting.
• Notching.

Geka Hydracrop 165 versions

There are 2 Punching Throat versions available:

• S Version: 510 mm Standard Throat.
• SD Version: 610 mm Extended Throat.

The capacities of the Hydracrop 165 are the following:

• Capacities based on a material resistance of 45 Kg/mm2.
• GEKA may change technical specifications, equipment and photographs of models, as well as any other information contained herein.
• Technical characteristics valid except for typographical errors or omissions.

• Punching station
  The punching cylinder is independently guided an equipped with an anti-rotation system. It also has space available to instal optional or customized tools.
• Flat bars shearing station
  It can do progressive cutting and shearing tasks with minimum deformation over flat bars. Possibility of cutting angles in its angle shearing station.
• Bars cutting station
  Shearing of Solid Round and Square Bars over UPN, UPE, IPN or IPE profiles with multiple options.
• Notching station
  Rectangular Notching Station with table included. Triangular or tube notching is an option.
• Angle shearing station
  Patented rectilinear motion system for cutting angles without deformation or loss of material.
