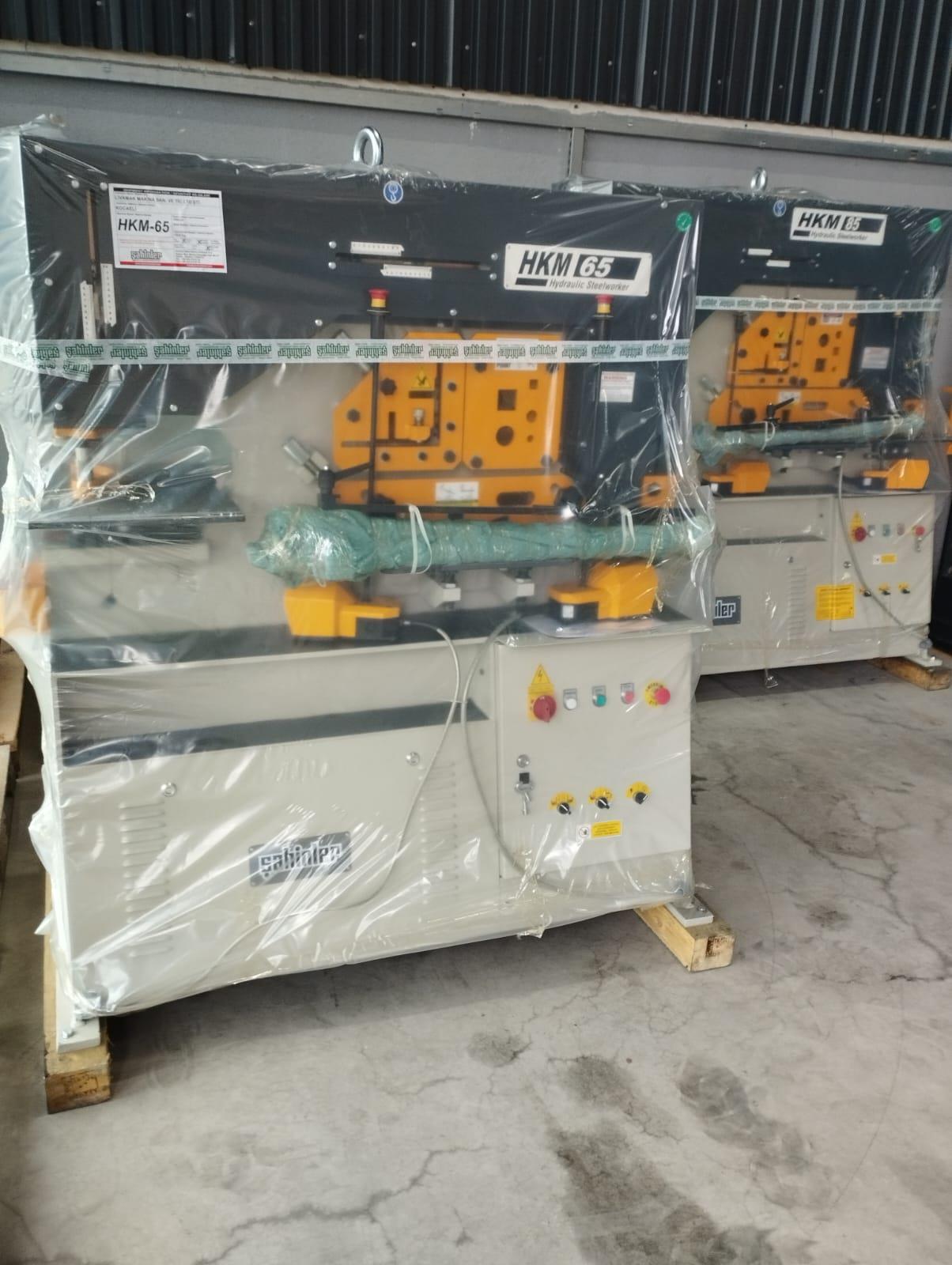

Şahinler HKM 65 Hydraulic Steelworker-Double Piston (HKM 65)

2 separate hydraulic piston and foot pedal to allow 2 operator to work at the same time
More productivity with adjustable piston stroke distance
Central Lubrication system
Electrical back gauge
Led lights on all work stations
Five individual workstation on the machine:
Ø22 mm punch and die and standard punching tools
Steel solid round and square bar cutting blade set
Angle cutting blade set
Sheet metal cutting shear
U-Notching blade set

PUNCHING		HKM 65
Diameter x max. Thickness		Ø 26x20 mm
Diameter x thickness		Ø 55x10 mm
Maximum Diameter		Ø 110x3 mm
Stroke		55 mm
Stroke count in (20 mm)		x 25
Throat depth		305 mm
Working height		1030 mm
STEEL BAR SHEAR
Round/Square		Ø 45- 45 mm
ANGLE SHEAR
Angle section (90°)		120x120x12 mm
Angle section (45°)		70x10 mm
Working height		1140 mm
SHEET METAL SHEAR
Sheet metal		300x20 mm
Sheet metal		375x15 mm
Blade Length		380 mm
Angle shear one side		100x15 mm
Working height		900 mm
NOTCHING
Thicknes		10 mm
Width		45mm
Depth		90 mm
Working height		900 mm
OPTIONAL TOOLS
U-I Section blades (for UPN - IPN cutting)		120x58 mm
T Section Blades		90x11 mm
Special V-Notching tooling		100x100x10 mm
V - bending Press Brake	Bar bend Max.	250x15 mm
	Sheet bend Max.	500x3 mm
TECHNICAL DATA
Motor Powe		5. 5 kW
Weight		1585 kg
Machine Dimensions (LxWxH)		1720x950x1880 mm
Power (Pressure)		65 ton
