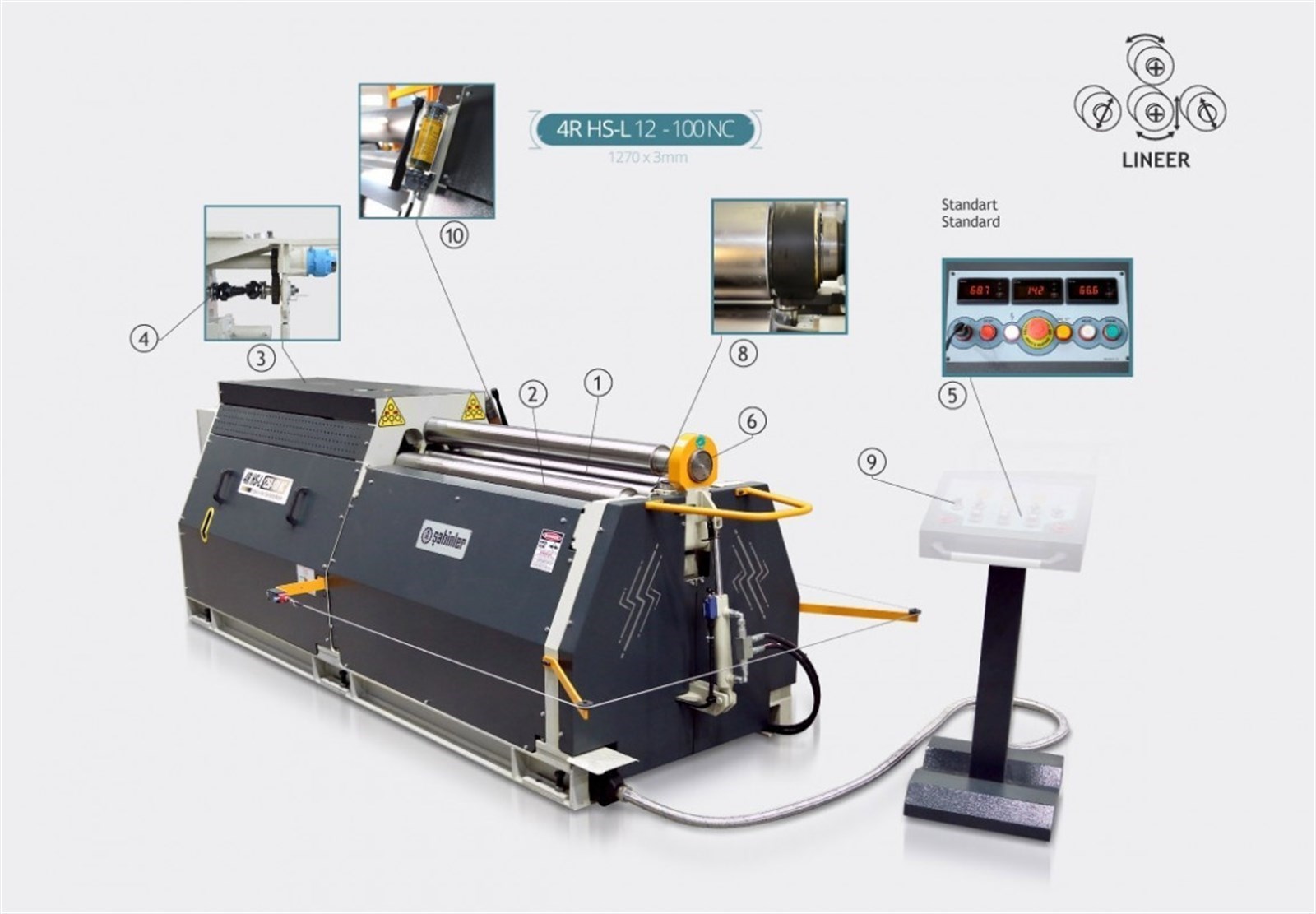

Şahinler 4R HS-L 15-100 4Rolls Hydraulic Plate Bending Machine

Brand : Şahinler Şahinler
Stock Code (4R HS-L 15-100)
Est. Delivery Time120 Days After Order
Shipment Place Turkiye
Payment Terms%30 On Order, %70 Before Shipment
Made InTurkiye
Min. Order Qty.1 Pcs.
Warranty1 Year
Stock Amount : 0
Item is out of stock.
Price : 14.322,00 EURO(Vat included)
logo Get Information with WhatsApp
Add to Favorites
Add to My Wish List
Compare
Notify me when the price goes down
Notify me when it is in stock
Very suitable for medium and light plates or stainless steel bending
Ferrules in full circle or varying radiuses can be done easily
Bottom pinching roll with hydraulic WEDGE SYSTEM. (Top/Down movements)
Double pre-bends (at both ends) in one pass is optained easily.
Overload protection
Two lateral rolls with double pinch pyramid action
Top roll is driven by a hydraulic motor coupled to the planetary gearbox
Bottom roller is driven by cardan joint system by means of gears.
Three digital readouts for easy roll positioning.
Hydraulic drop end for easy removal of finished ferrule
Easy operation with mobile control panel
Welded Steel frames
SAE 1050 (CK 45-50) forged or hot rolled, induction hardened and polished steel rolls
Conical bending device
Double speed working system
Central lubrication system
