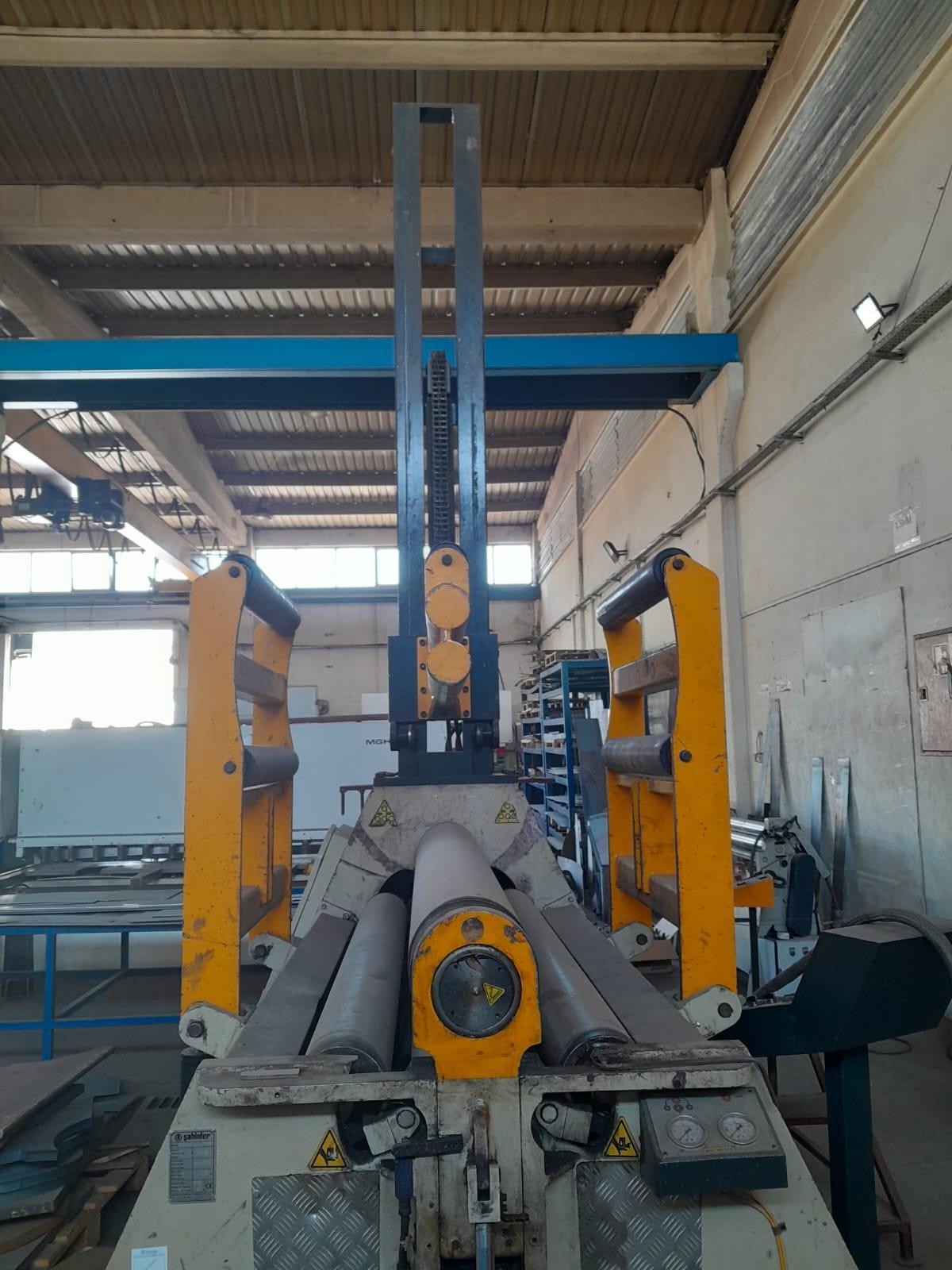

Şahinler 4R HS 20-245 4Rolls Hydraulic Plate Bending Machine - Used Second Hand Machine (4R HS 20-245)

Very suitable for medium and light plates or stainless steel bending
Ferrules in full circle or varying radiuses can be done easily
Pinch roll and lateral rolls move with hydraulic pistons in orbital way.
Overload protection
Top Roll is driven by a hydromotor and planetary gearbox and bottom roll is driven by a gear and cardan system
Three digital readouts for easy roll positioning
Hydraulic Drop-End for easy removal of fnished ferrule
Easy operation with mobile control panel
Welded steel frames
SAE 1050 (CK 45-50) forged or hot rolled, induction hardened and polished steel rolls
Conical Bending device
Hydraulic balancing system
Double speed working system

General Technical Specifications
Plate Bending Roll Type	4		pcs.
Useful Length	2050		mm
Central Rolls Diameter  (Ø)	245		mm
Side Rolls Diameter (Ø)	180		mm
Bending Capacity Specifications and Power
Min. Bending Diameter With Pre-bend (Top Roll x 1,5)	368		mm
Min. Bending Diameter With Pre-bend (Top Roll x 5)	1225		mm
Min. Bending Diameter Without Pre-bend (Top Roll x 1,5)	368		mm
Min. Bending Diameter Without Pre-bend (Top Roll x 5)	1225		mm
Working Speed	1,5 -6		m/min.
Motor Power	7,5		Kw
Machine Dimensions
Length	4300		mm
Width	1425		mm
Height	1470		mm
Weight	5450		kg
