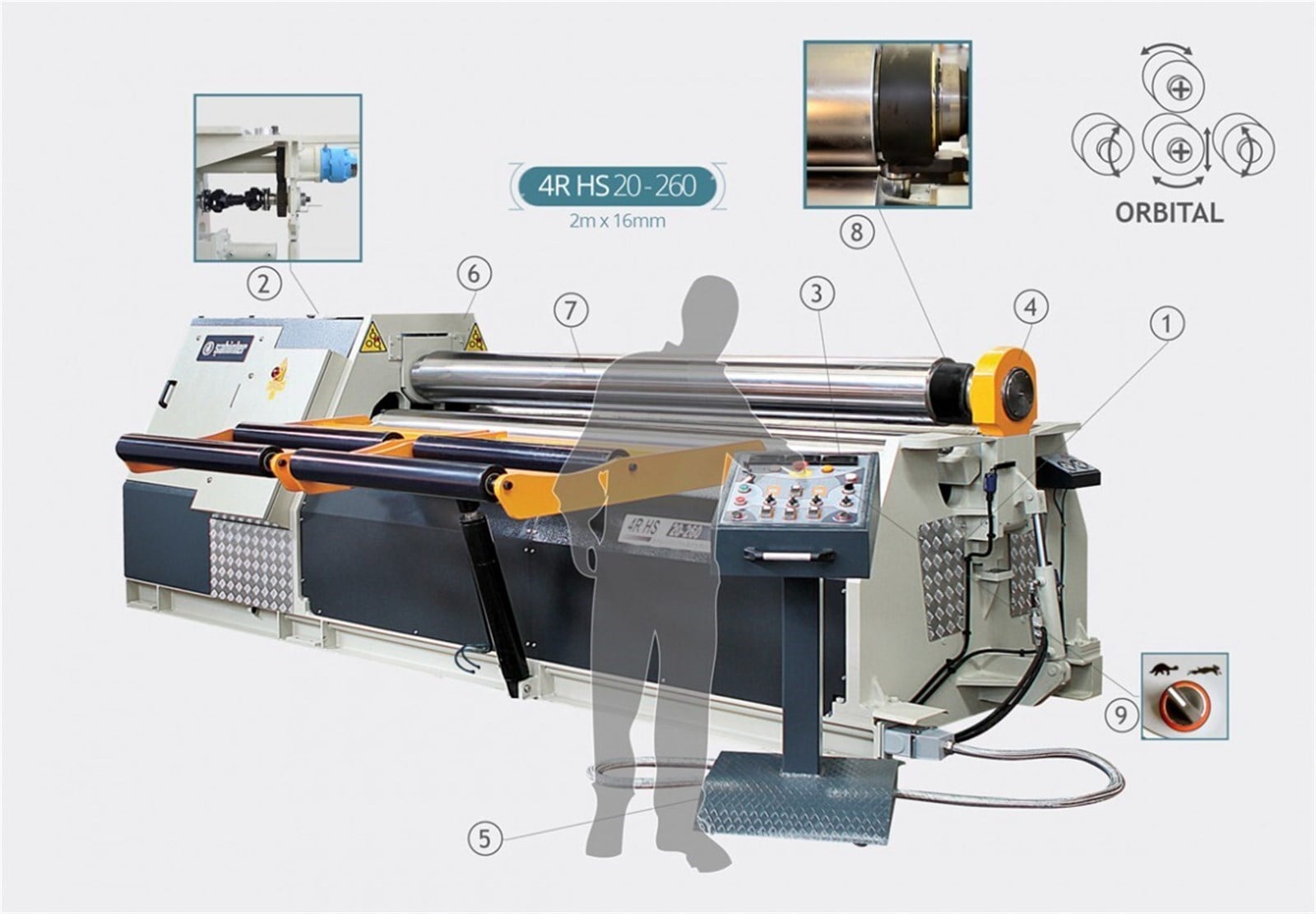

4R HS 15-220 4Rolls Hydraulic Plate Bending Machine

Şahinler 4R HS 15-245 4Rolls Hydraulic Plate Bending Machine (4R HS 15-245)

Brand : Şahinler

Stock Amount : 0

Est. Delivery Time90 Days After Order

Shipment Place Turkiye

Payment Terms%30 On Order, %70 Before Shipment

Made InTurkiye

Min. Order Qty.1 Pcs.

Warranty1 Year

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Plate Bending Machines

4Rolls Hydraulic Plate Bending Machines

Very suitable for medium and light plates or stainless steel bending
Ferrules in full circle or varying radiuses can be done easily
Pinch roll and lateral rolls move with hydraulic pistons in orbital way.
Overload protection
Top Roll is driven by a hydromotor and planetary gearbox and bottom roll is driven by a gear and cardan system
Three digital readouts for easy roll positioning
Hydraulic Drop-End for easy removal of fnished ferrule
Easy operation with mobile control panel
Welded steel frames
SAE 1050 (CK 45-50) forged or hot rolled, induction hardened and polished steel rolls
Conical Bending device
Hydraulic balancing system
Double speed working system

Automation with NC and CNC Control
Overhead crane for large diameters
Hydraulic lateral side supports for large diameters
Hydraulic plate ejector
Ground rolls for special jobs
Infnitively variable speed system
Electronical balancing system for parallel movement of the rolls

General Technical Specifications

Plate Bending Roll Type	4	pcs.
Useful Length	1550	mm
Central Rolls Diameter (Ø)	245	mm
Side Rolls Diameter (Ø)	180	mm

Bending Capacity Specifications and Power

Pre-bending thickness (Top Roll x 1,5)	10	mm
Min. Bending Diameter with Pre-bend (Top Roll x 1,5)	368	mm

Pre-bending thickness (Top Roll x 5)	12	mm
Min. Bending Diameter with Pre-bend (Top Roll x 5)	1225	mm

Bending thickness without pre-bend (Top Roll x 1,5)	12	mm
Min. Bending Diameter without Pre-bend (Top Roll x 1,5)	368	mm

Bending thickness without pre-bend (Top Roll x 5)	15	mm
Min. Bending Diameter without Pre-bend (Top Roll x 5)	1225	mm

Working Speed	1,5 -6	m/min.
Motor Power	7,5	Kw


Machine Dimensions

Length	3800	mm
Width	1425	mm
Height	1470	mm
Weight	4600	mm

• All technical speciﬁcations are subject to change without notice.
• Plate bending capacities are given for 260 N/mm2 plate yielding strength.
