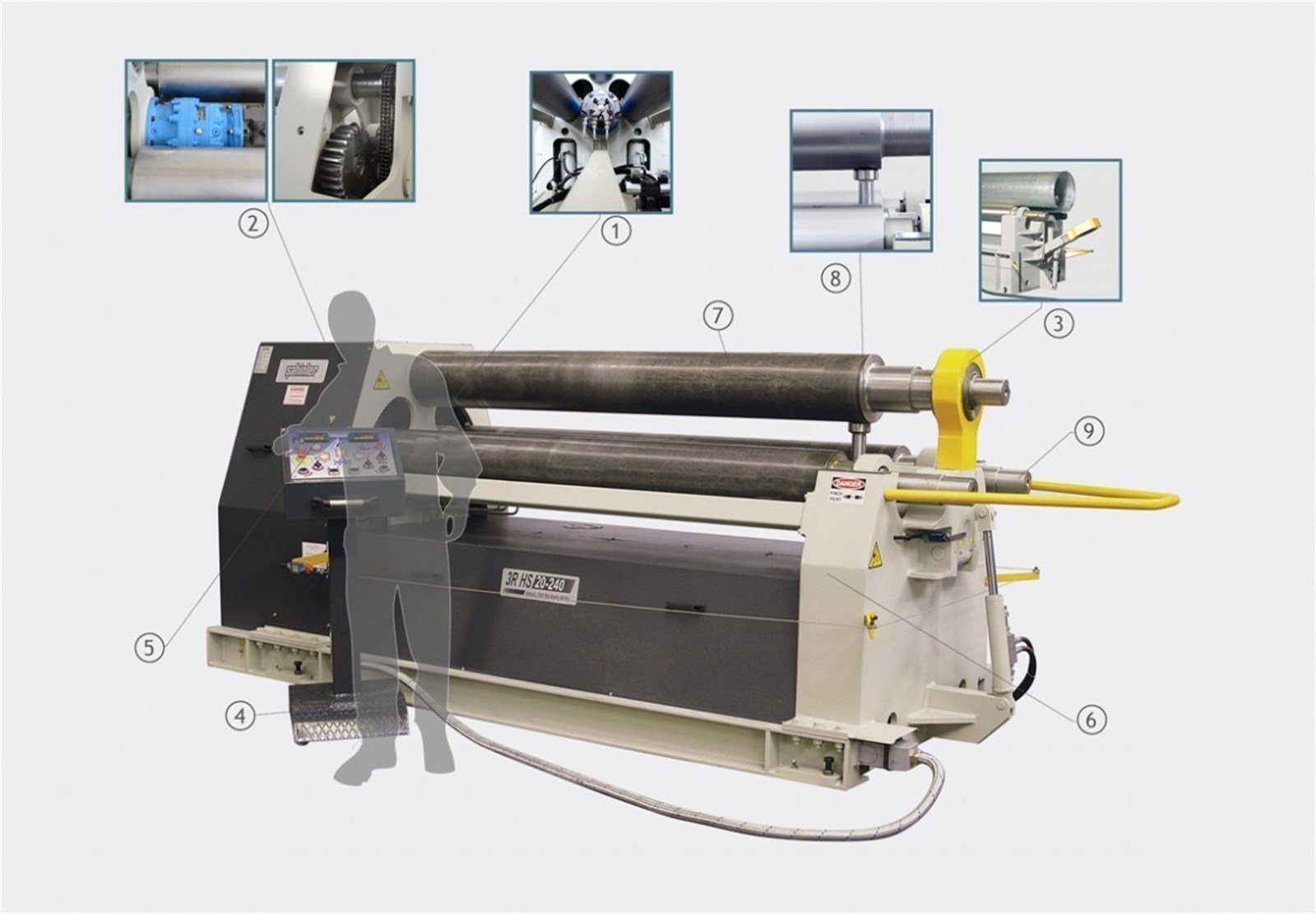

3R HS 20-210 3Rolls Hydraulic Plate Bending Machine

Şahinler 3R HS 30-210 3Rolls Hydraulic Plate Bending Machine

Brand : Şahinler

Stock Code (3R HS 30-210)

Est. Delivery Time90 Days After Order

Shipment Place Turkiye

Payment Terms%30 On Order, %70 Before Shipment

Made InTurkiye

Min. Order Qty.1 Pcs.

Warranty1 Year

Stock Amount : 0

Item is out of stock.

Price : 34.386,00 EURO(Vat included)

Get Information with WhatsApp

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Very suitable for light and medium plates, aluminium or stainless steel bending
Ferrules in full circle or varying radiuses can be done easily
Lateral rolls move with hydraulic pistons in orbital way
Overload protection
3 rolls powered by single planetary gearbox and gear system
Hydraulic Drop-End for easy removal of finished ferrule
Easy operation with mobile control panel
Two digital readouts for easy roll positioning of bottom rolls
Welded steel frames
SAE 1050 (CK 45-50) forged or hot rolled, induction hardened and polished steel rolls
Conical bending device with ball bearing
Hydraulic balancing system for parellel movement of the rolls
Extended roll shafts for profile and pipe bending operation

Overhead crane for large diameters
Hydraulic lateral side supports for large diameters
Ground rolls for special jobs
Profile bending rolls set
Infinitively variable speed adjustment
Electronic balancing system for parallel movement of the rolls

General Technical Specifications

Plate Bending Roll Type	3	pcs.
Useful Length	3100	mm
Central Rolls Diameter (Ø)	210	mm
Bottom Roll Diameter (Ø)	210	mm
Side Rolls Diameter (Ø)	190	mm

Bending Capacity Specifications and Power

Pre-bending thickness (Top Roll x 1,5)	4	mm
Min. Bending Diameter with Pre-bend (Top Roll x 1,5)	315	mm

Pre-bending thickness (Top Roll x 5)	6	mm
Min. Bending Diameter with Pre-bend (Top Roll x 5)	1050	mm

Bending thickness without pre-bend (Top Roll x 1,5)	6	mm
Min. Bending Diameter without Pre-bend (Top Roll x 1,5)	315	mm

Bending thickness without pre-bend (Top Roll x 5)	7	mm
Min. Bending Diameter without Pre-bend (Top Roll x 5)	1050	mm

Working Speed	5	m/min.
Motor Power	7,5	Kw


Machine Dimensions

Length	4450	mm
Width	1200	mm
Height	1300	mm
Weight	5.205	kg

• All technical speciﬁcations are subject to change without notice.
• Plate bending capacities are given for 260 N/mm2 plate yielding strength.
