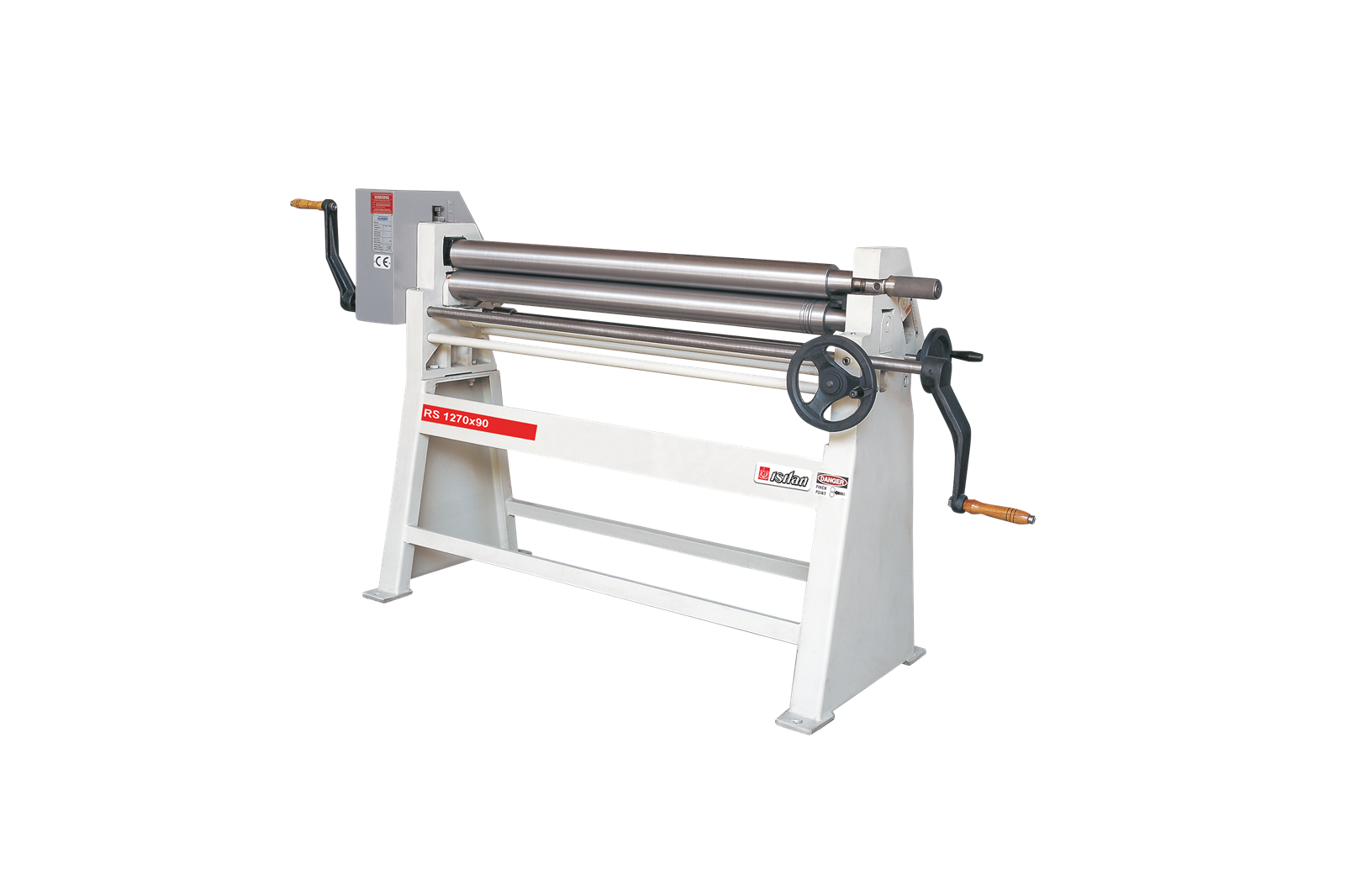

Isitan RS 1550 x 90 Manual 3Rolls Plate Bending Machine

Very suitable for light and medium plates, aluminum or stainless steel
Built according to EC Safety Directives and has CE Mark
Manual Drop-End for easy removal of finished ferrule
SAE 1050 Quality Certificated Steel Rolls with high tensile strength
Cast Iron Main Frames
Wire grooves at the end of the rolls
Cast Iron Main Frames

Induction hardened rolls (HRC58-60)

MODEL	Usefull length mm	Bending capacity mm	Roll diameters Ø mm	Roll speed m / min. (dk.)	Motor power kw	Wire grooves dia. mm	Length mm	Width mm	Height mm	Weight kg
RS 1550 x 90	1550	2.0	90	--	--	4/6/9	2580	700	1250	560
