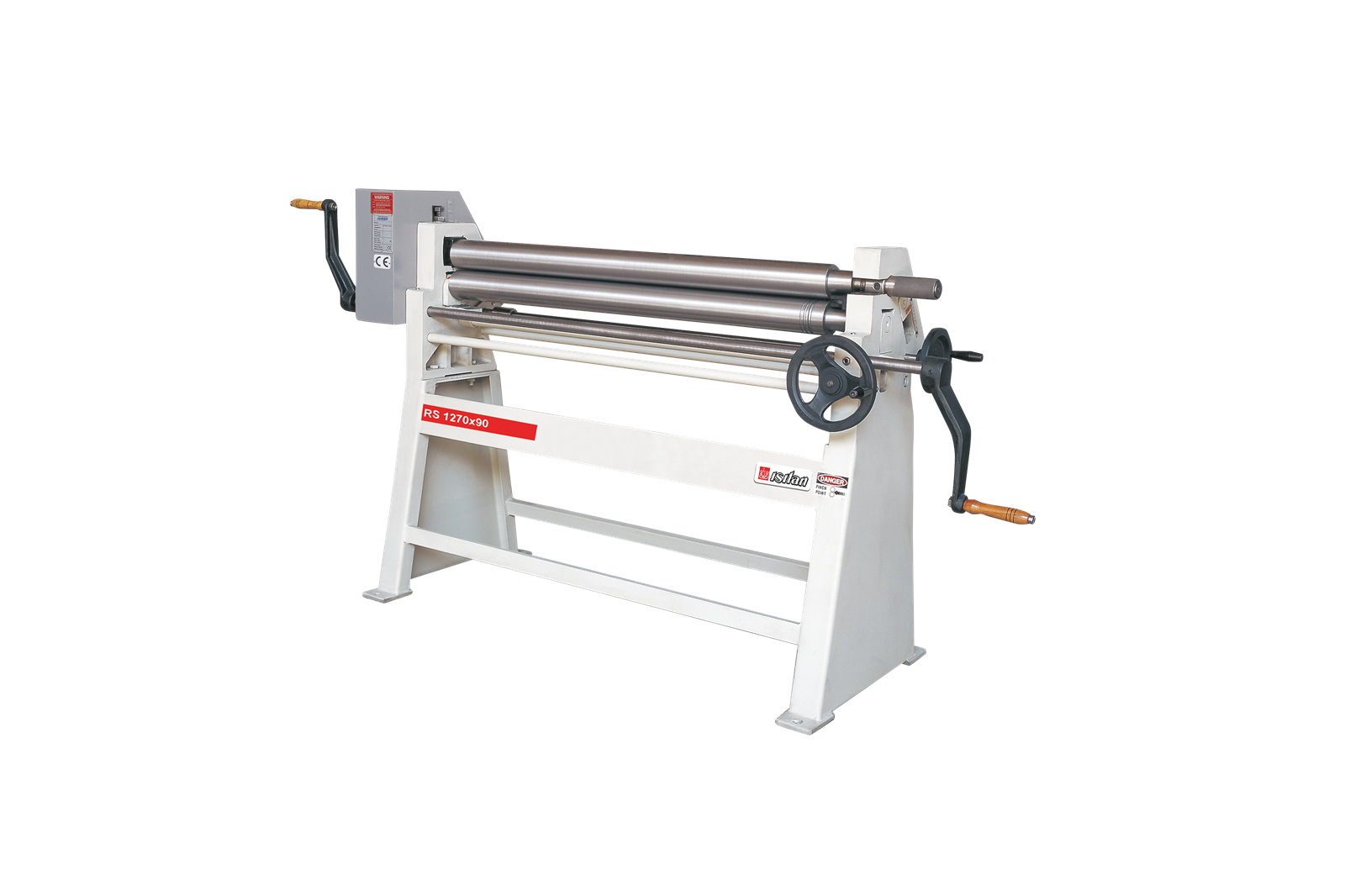

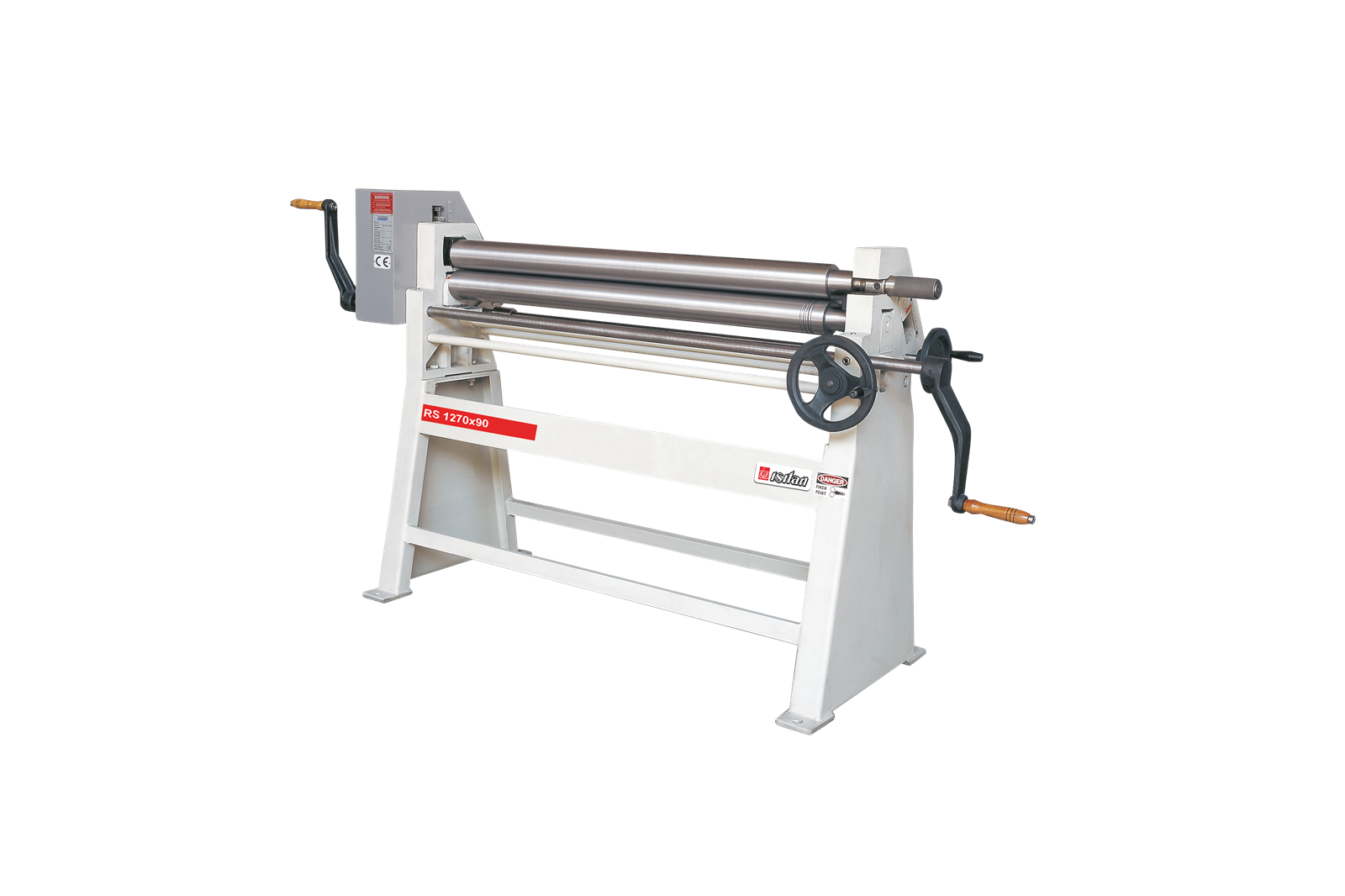

Isıtan RS 1050 x 90 Motorized 3Rolls Plate Bending Machine

Isitan RS 1050 x 90 Manual 3Rolls Plate Bending Machine (RS 1050 x 90)

Brand : Isitan

Stock Amount : 0

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InTurkiye

Min. Order Qty.1 Pcs.

Warranty1 Year

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Plate Bending Machines

3Rolls Manual Plate Bending Machines

Very suitable for light and medium plates, aluminum or stainless steel
Built according to EC Safety Directives and has CE Mark
Manual Drop-End for easy removal of finished ferrule
SAE 1050 Quality Certificated Steel Rolls with high tensile strength
Cast Iron Main Frames
Wire grooves at the end of the rolls
Cast Iron Main Frames

Induction hardened rolls (HRC58-60)

MODEL	Usefull length mm	Bending capacity mm	Roll diameters Ø mm	Roll speed m / min. (dk.)	Motor power kw	Wire grooves dia. mm	Length mm	Width mm	Height mm	Weight kg
RS 1050 x 90	1050	3.0	90	--	--	4/6/9	2080	700	1250	410

MODEL

Usefull length

Bending capacity

Roll diameters Ø

Roll speed

m / min. (dk.)

Motor power

Wire grooves dia.

Length

Width

Height

Weight

RS 1050 x 90

1050

3.0

4/6/9

2080

700

1250

410

Isitan RS 1050 x 90 Manual 3Rolls Plate Bending Machine (RS 1050 x 90)

Est. Delivery Time60-75 Days After Order Shipment Place Turkiye Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment Made InTurkiye Min. Order Qty.1 Pcs. Warranty1 Year

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InTurkiye

Min. Order Qty.1 Pcs.

Warranty1 Year
