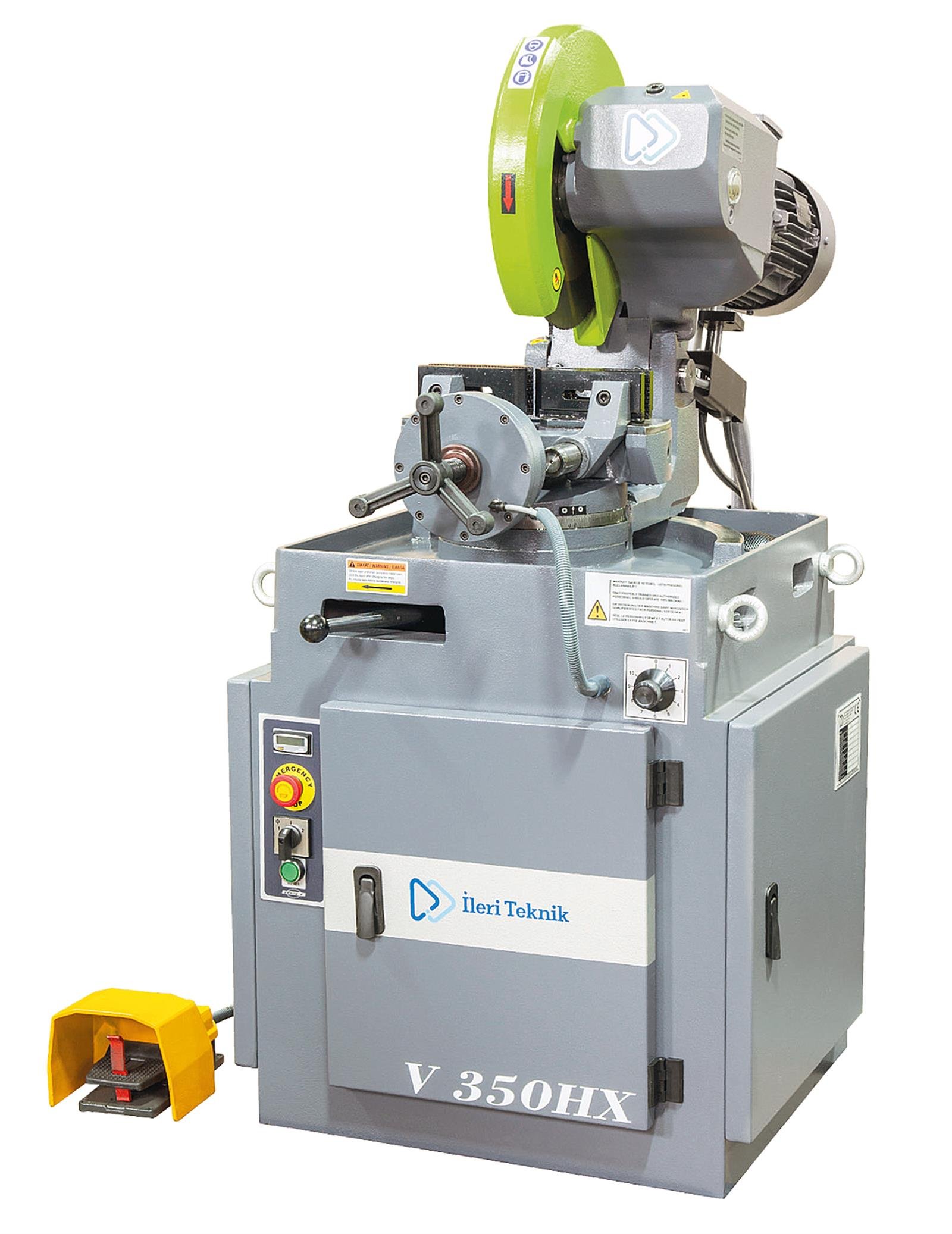

Ileri Teknik V 350HX Semi Automatic Circular Saw Machine (Ileri Teknik V 350HX )

Compact, pull down manual circular saw with powered material clamping and operated by a hand lever, offer easy mitre cutting for the workshop or toolroom

• Semi-automatic circular saw designed for fast cutting
• High production rates, ideal for short batch runs
• Heavy duty gearbox
• Cast iron basement
• Foot switch actuation
• Hydro-pneumatic operation of saw head smoothes descent for optimum cut
• Cutting speed regulator
• Adjustable head stroke according to the dimensions of the material which has to be cut
• 45° right to 45° left cutting



Cutting Capacity

Maximum Saw Diameter	350 mm
Saw Angle	90°                         +/- 45°
Round Material Diameter (max.)	115 mm                   110 mm
Square Material (max.)	100 x 100 mm        90 x 90 mm
Rectangular Material (Max.)	120 x 80 mm          90 x 90 mm

Main Voltage	400 V
Control Voltage	24 V
Installed Power	5,85  kW
Current	2,25 A
Saw Engine	1,8 - 2,2 kW
Boron Oil Pump	0,06 kW
Air pressure	6 kg/cm2 (240 l/min)
Saw Speed	40 / 80 Dev. / Dak.
Angle Rotation	90°  / +/- 45°

Saw Diameter	350 mm
Saw Bore Diameter	32 mm
Pin Holes	2 x Çap 11
TiN Coating	Medium Hard Steel
TiCn Coating	High Stiffness Steel
TiAIN Coating	Stainless steel

Most	1100 mm
Size	600 mm
Height	1400 mm
Net weight	300 Kg
Gross weight	320 Kg
